IHC PTO Corn Binder Left Gatherer Parts
Aftermarket replacement parts for IHC McCormick-Deering PTO Driven Corn Binder Gatherer, Upper, and Lower, Left
Parts are being manufactured by an Amish company located in PA. For years, the New McCormick-Deering IHC Corn Binders have been the favorite among Amish communities. These parts are being made to keep the old units running.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select multiple items in the same drop-down, then select one to add to the cart, then select continue shopping to add more items. To deselect, click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / IHC PTO Corn Binder Left Gatherer Parts
You are shopping for the PTO Binder Parts. If you are looking for Ground Drive Binder Parts, please select the GD category.
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few small parts. We charge a minimum flat base rate of $19.95 for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders, including truck freight. We will send you an invoice if needed. Subject to a 10% handling and restocking fee on invoices not paid in 15 days.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or modern communication methods, so orders may take a bit longer to receive, package, and ship. We are also unable to maintain an electronic inventory of parts, as the shops sell to Amish machine shops across the country. Occasionally, new parts will need to be made before the order can be shipped.
Prices are subject to change without notice.
Using the drop-down boxes, please select one part per page. Add it to the cart, then return to the same page to add more parts.
Available Parts
Parts designated for right- or left-hand orientation, standing at the rear of the machine, looking forward.

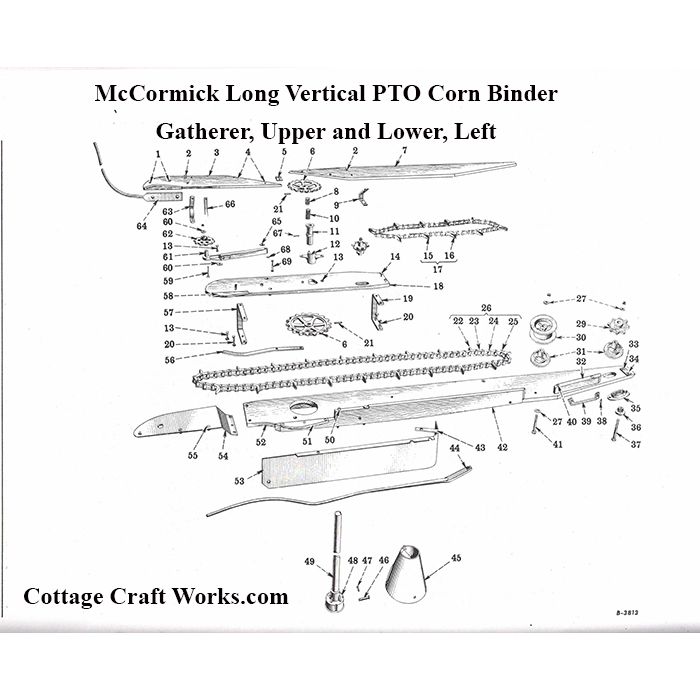

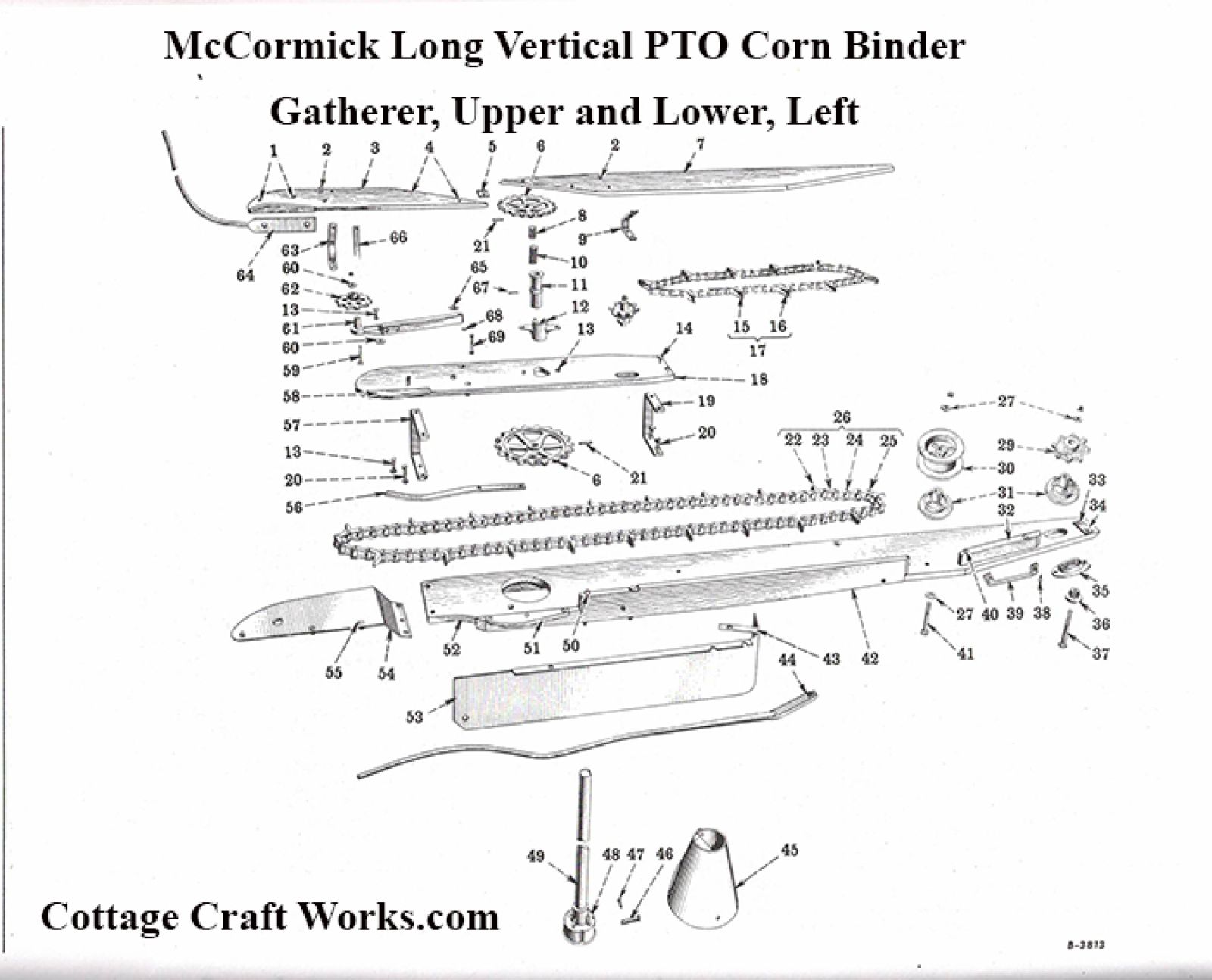

Gatherer, Upper, and Lower, Left
3. CA677 ¼-GR Top Board, Upper Left 1-L
5. C678-3/4-GR** Connection Clip (Board Splicers)
7. CA677-GR ** Top Board, Lower, Left 2-L
8. C701-GR**** Roller Bearing, Long
10. C589-GR Shaft Box Bearing & 3” Race
17. C699-GR** Chain, Top, Left 84”
30. CA3248-GR Chain Sheave (Idler Roller)
34. C23321-GR Chain Board Reinforcement 4-L End Plate
36. CA674-GR***** Chain Tightener Dog, 8 Teeth
39. C33230-GR Tilting Connector Bracket (4-L Board) Brace
44. CA904-GR** Butt Fender Rod
45. C13151-GR** Coupling Shield, Left
49. C13140-GR** Gather Shaft, Upper Left
51. C33144-GR** Chain Stripper, Left 4-L Board Stripper
52. CB33152-GR Gatherer Chain Board, Left (4-L Board)
53. C13158-GR** Breast Plate 4-L Board Shield
56. C23335-GR*** Chain Stripper 4-L Strap Stripper
58. CB33142Top Chain Stripper, Left 3-L Board Stripper
61. C23947-GR Top Chain Guide, Left, (Sprocket Bracket)
64. C33231-GR Bundle Guide, Front, Left
