IHC PTO Corn Binder Knotter Parts
Aftermarket replacement parts for IHC McCormick-Deering PTO PTO-driven corn Binder Breastplate, Binder Stripper, Knotter, and Shafts
Parts are being manufactured by an Amish company located in PA. For years, the New McCormick-Deering IHC Corn Binders have been the favorite among Amish communities. These parts are being made to keep the old units running.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select more than one part in the same drop-down box, select one to add to the cart, and then select Continue Shopping to add more parts. To deselect, click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / IHC PTO Corn Binder Knotter Parts
You are shopping for the PTO Binder Parts. If you are looking for Ground Drive Binder Parts, please select the GD category.
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few small parts. We charge a minimum flat base rate of $19.95 for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders, including truck freight. We will send you an invoice if needed. Subject to a 10% handling and restocking fee on invoices not paid in 15 days.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or modern communication methods, so orders may take a bit longer to receive, package, and ship. We are also unable to maintain an electronic inventory of parts, as the shops sell to Amish machine shops across the country. Occasionally, new parts will need to be made before the order can be shipped.
Prices are subject to change without notice. A 25% restocking fee applies to returned parts.
Using the drop-down boxes, please select one part per page. Add it to the cart, then return to the same page to add more parts.

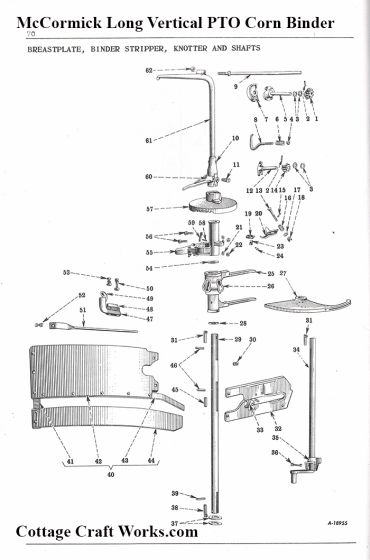

Available Parts
Breastplate, Binder Stripper, Knotter, and Shafts
1. T582-GR Disk Pinion Gear
2. Q5066 Pinion Gear Pin (#4-GR)
3. Q3476-GR (#6-GR) Washer (Disk Side)
3. Q232 (#7-GR) Washer (Disk Pinion Side)
4. T826M (#13-GR) Hex Nut 7/16”
5. TA820-GR Disk
6. T823M-GR Spring
7. TF821 (TG821-GR) Disk Plate
8. T822M-GR** Cord Holder Support Rod
9. CC13010-GR Breast Plate Retainer (Bundle Rod Top)
11. VB639-GR Discharge Arm Bolt (Set Screw)
12, T567H (RS3765K-GR) Bill Hook
13. QA544-GR Machine Bolt
14. TB586-GR Hook Pinion Gear
16. V620-GR Jaw Cam Spring
17. Q152 (#16-GR) Washer
18. M152M (#18-GR) Nut
19. T824M (#19-GR) Twine Knife
20. V619-GR Jaw Cam (Hook Pan)
24. T609 (#20-GR) Set Screw
25. C23399-GR Discharge Arm (Lower)
27. CE557-GR Needle
31. Q81-GR Gib Key (Knotter Bell) 5/8” x 3/8” x 2-1/4” Key
33. CB751-GR Finger Latch Housing
34. C33263-GR Needle Shaft
38. Q1497-GR** Tapered Key for Bell Housing
59. C3210-GR Knotter Cam,16 Teeth (Knotter Bell)
61. CD908-GR Upper Discharge Arm, Complete
