IHC PTO Corn Binder Gathering Countershaft Parts
Aftermarket replacement parts for IHC McCormick-Deering PTO PTO-driven corn Binder Gathering Countershaft Parts
Parts are being manufactured by an Amish company located in PA. For years, the New McCormick-Deering IHC Corn Binders have been the favorite among Amish communities. These parts are being made to keep the old units running.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select more than one part in the same drop-down box, select one to add to the cart, and then select Continue Shopping to add more parts. To deselect, click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / IHC PTO Corn Binder Gathering Countershaft Parts
You are shopping for the PTO Binder Parts. If you are looking for Ground Drive Binder Parts, please select the GD category.
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few small parts. We charge a minimum flat base rate of $19.95 for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders, including truck freight. We will send you an invoice if needed. Subject to a 10% handling and restocking fee on invoices not paid in 15 days.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or modern communication methods, so orders may take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts, either, as the shops also sell to Amish machine shops across the country. Occasionally, new parts will need to be made before the order can be shipped.
Prices are subject to change without notice. A 25% restocking fee applies to returned parts.
Using the drop-down boxes, please select one part per page. Add it to the cart, then return to the same page to add more parts.
Available Parts
Parts designated for right- or left-hand orientation, standing at the rear of the machine, looking forward.

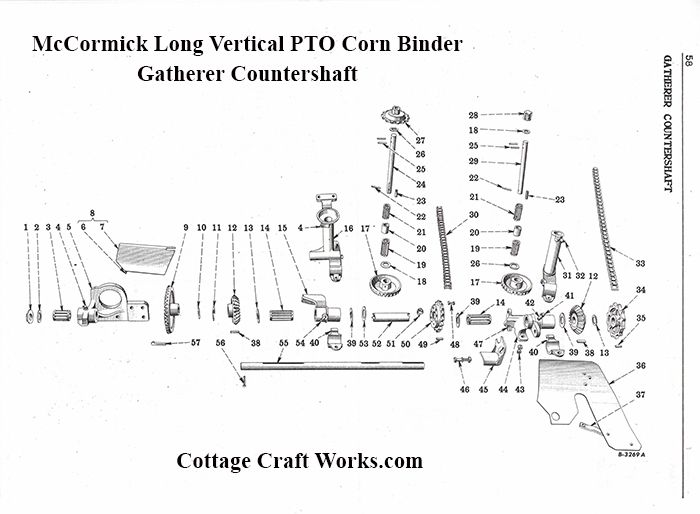

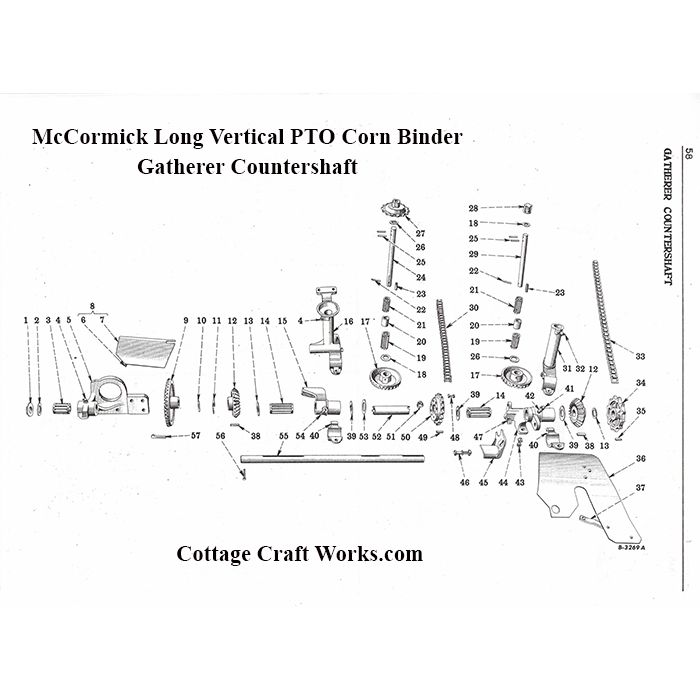

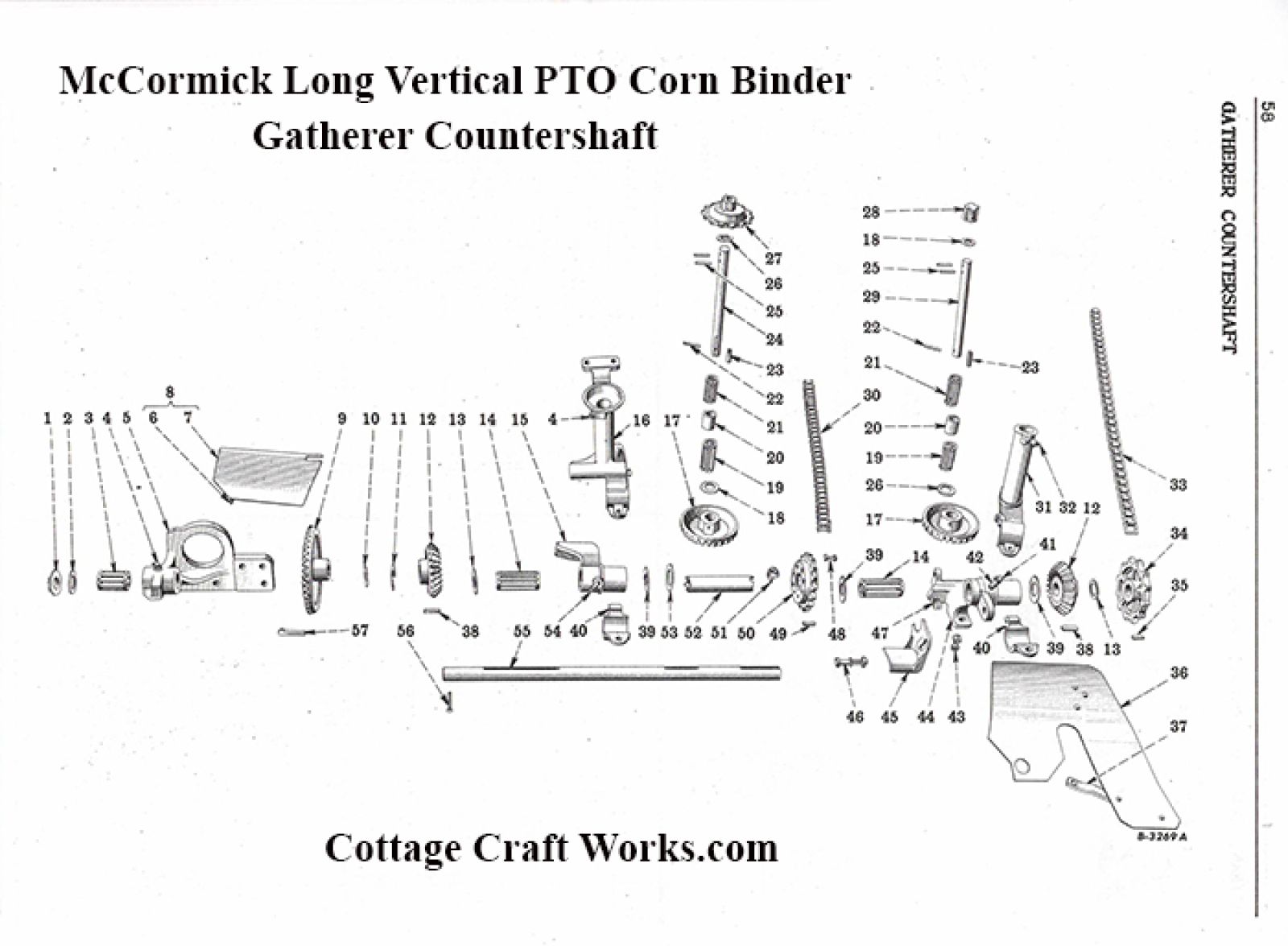

Gathering Countershaft
2. Q191-GR*** Washer 1-9/32 x 2-3/8” x 18 ga.
3. ST95-GR Main Shaft Bearing (Short) (95744)
7. C33221-GR Bevel Gear Box Shield
8. C33269-GR Bevel Gear (Main Casting Shield)
9. CB33134-GR Bevel Gear, 38 Teeth
12. CA570-GR Gear, 21 Teeth
14. C521-GR/DA 95764** Roller Bearing
16. CB3040-GR Main Casting Shaft Box, Lower Left
17. C3254-GR Bevel Gear, 25 Teeth
19. V470-1/2-GR Roller Bearing
21. N482-GR/DA Roller Bearing
23. Q1449-GR Keystock for Gear 3254
24. C13515-GR Shaft, Main Casting Only, Lower Left
27. C3468-GR Sprocket, 14 Teeth
28. CA1468-GR Female Coupling, Internal
29. C33649-GR Main Casting Shaft, Lower, Right
31. CA3041-GR Main Casting Shaft Box Lower Right
36. C33255-GR Binder Chain (Bell Housing) Shield
40. C569-GR Box Hinge Cap
44. CA3036-GR Bracket Right (Out Right)
45. C3503-GR Chain Tightener
50. C3467-GR Drive Sprocket, 17 Teeth
51. C23312-GR Adjuster Sleeve Lock (Sprocket Plate)
55. C33147-GR Countershaft (Main Shaft)
57. Q1497-GR** Tapered Key for Bell Housing
