IHC PTO Corn Binder Conveyor Parts
Aftermarket replacement parts for IHC McCormick-Deering PTO Driven Corn Binder Double Chain Conveyor Bundle Carrier Parts
Parts are being manufactured by an Amish company located in PA. For years the New McCormick-Deering, IHC Corn Binders have been the favorite of the Amish communities. These parts are being made to keep the old units running.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / IHC PTO Corn Binder Conveyor Parts
You are shopping for the PTO Binder Parts. If you are looking for Ground Drive Binder Parts, please select the GD category.
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling is based on an average purchase of a few small parts. We do charge a minimum of $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.
Prices are subject to change without notice.
Using the drop-down boxes please select one part per page. Add it to the cart and return for more parts on the same page.
Available Parts
Parts designated for a Right or Left orientation standing at the rear of the machine looking forward.

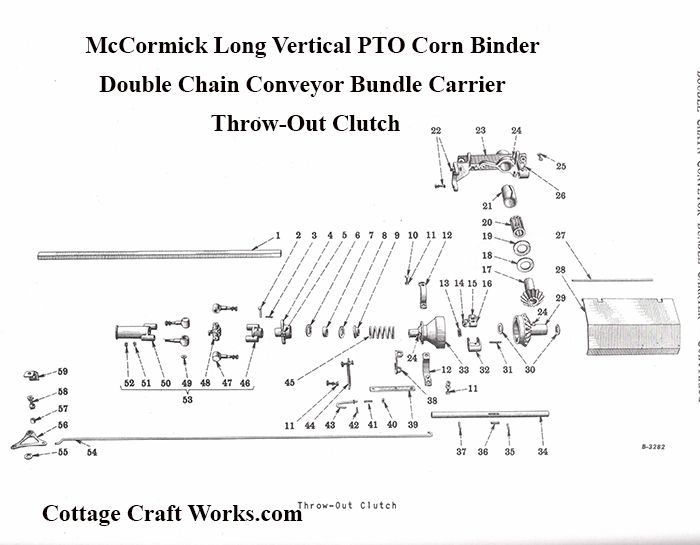

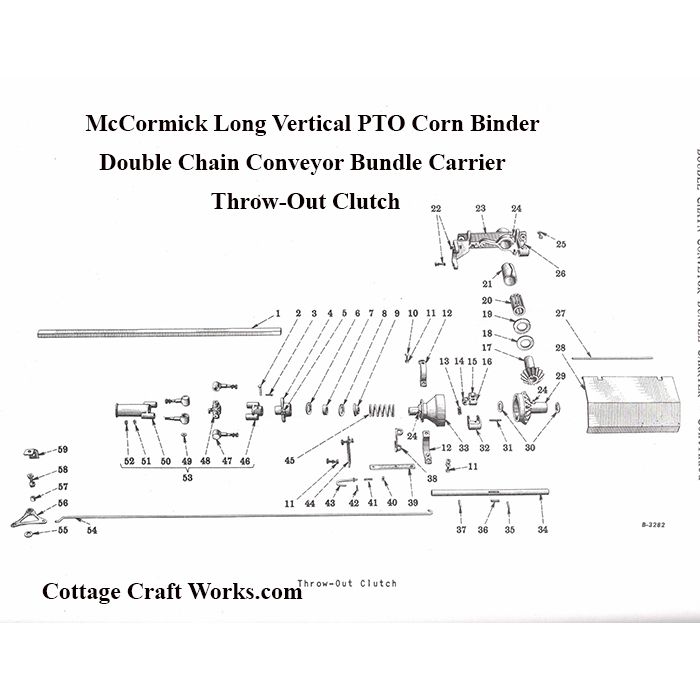

Double Chain Conveyor Pg. 87 Throw-Out Clutch of the parts manual
13. V264-GR** Bell Housing Dog Roller Spring
14. V341-GR** Bell Housing Dog Roller
38. CA3000-GR*** Clutch Fork Case
45. B1099-GR Clutch Spring (Used)
Double Chain Conveyor Bundle Carrier Countershaft pg. 88 of the parts manual
13. C3330-GR Bearing Box Loader Shaft
14. C3449-GR Box Bearing Bracket, Loader Shaft, Left
19. CA3448-GR** Box Bearing Bracket, Loader Shaft, Right
21. C3334-GR Slip Clutch Dog
22. B12170-GR Slip Clutch Ratchet
23. C3333-GR Slip Clutch Sprocket, 9 teeth
25. B9082-GR Slip Clutch Nut
