IHC PTO Corn Binder Butt Gatherer Parts
Aftermarket replacement parts for IHC McCormick-Deering PTO Driven Corn Binder Butt Gatherer Parts
Parts are being manufactured by an Amish company located in PA. For years the New McCormick-Deering, IHC Corn Binders have been the favorite of the Amish communities. These parts are being made to keep the old units running.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select more than one part in the same drop-down box, select one to add to the cart, and then select Continue Shopping to add more parts. To deselect click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / IHC PTO Corn Binder Butt Gatherer Parts
You are shopping the PTO Binder Parts. If you are looking for Ground Drive Binder Parts, please select the GD category.
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few small parts. We do charge a minimum of $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.
Prices are subject to change without notice.
Using the drop-down boxes please select one part per page. Add it to the cart and then return for more parts on the same page.

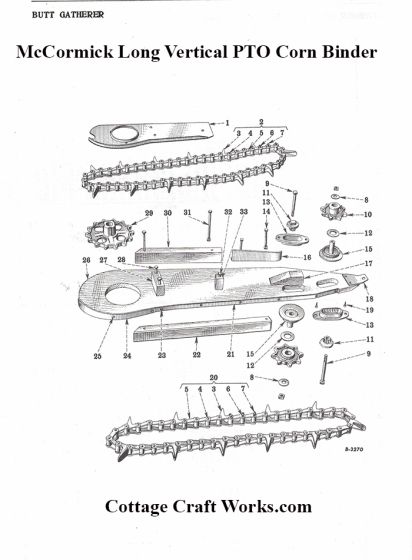

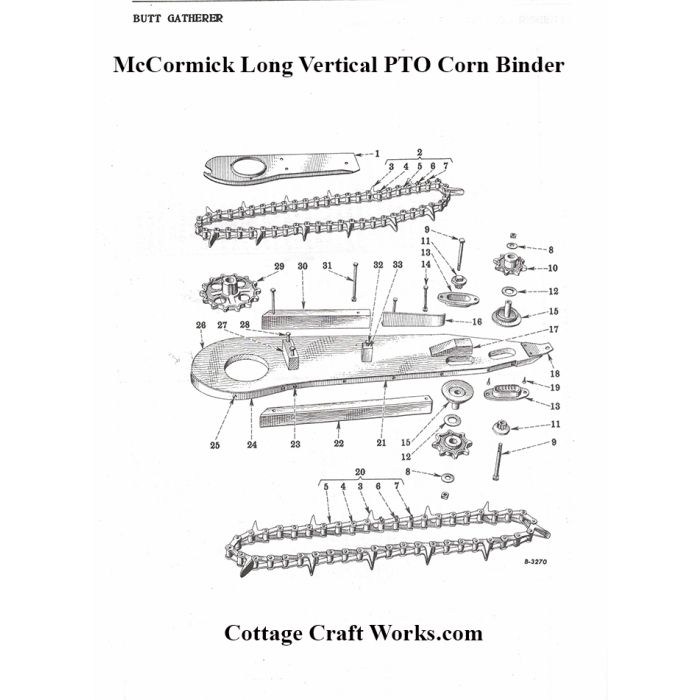

Available Parts
Butt Gatherer
1. C33256-GR** 5-L Board Chain Shield
2. C33238-GR Upper Chain 82”
10. C23035-GR Chain Tightener Sprocket and Stem (includes the C23475 Stem)
11. CA674-GR***** Chain Tightener Dog. 8 Teeth
13. C3372-GR Chain Tightener Bracket
15. C23475-GR** Chain Tightener Stud, (Sprocket Stand)
16. C3470-GR Chain Guide, Upper Front
18. C13215-GR 5-L Board End Plate and Sill Connection
20. C33239-GR Lower Chain 72”
21. C1276-GR Chain Board 5-L Protector Strip
22. C33173-GR Chain Guide, Lower, (Long 4-Hole Wood Spacer
24. C33161-GR Chain Stripper (5-L Board Stripper)
26. CA33158-GR Chain Board (5-L Board Shield)
27. C13578-GR Chain Sheild 2-Hole Wood Spacer
29. CA3054-GR Sprocket Upper, 14 Teeth
30. C33159-GR Chain Guide, Upper Rear, (Long Two Hole Wood Spacer)
33. C13579-GR Chain Shield Single Hole Wood Spacer
