IHC Mower Pitman Parts

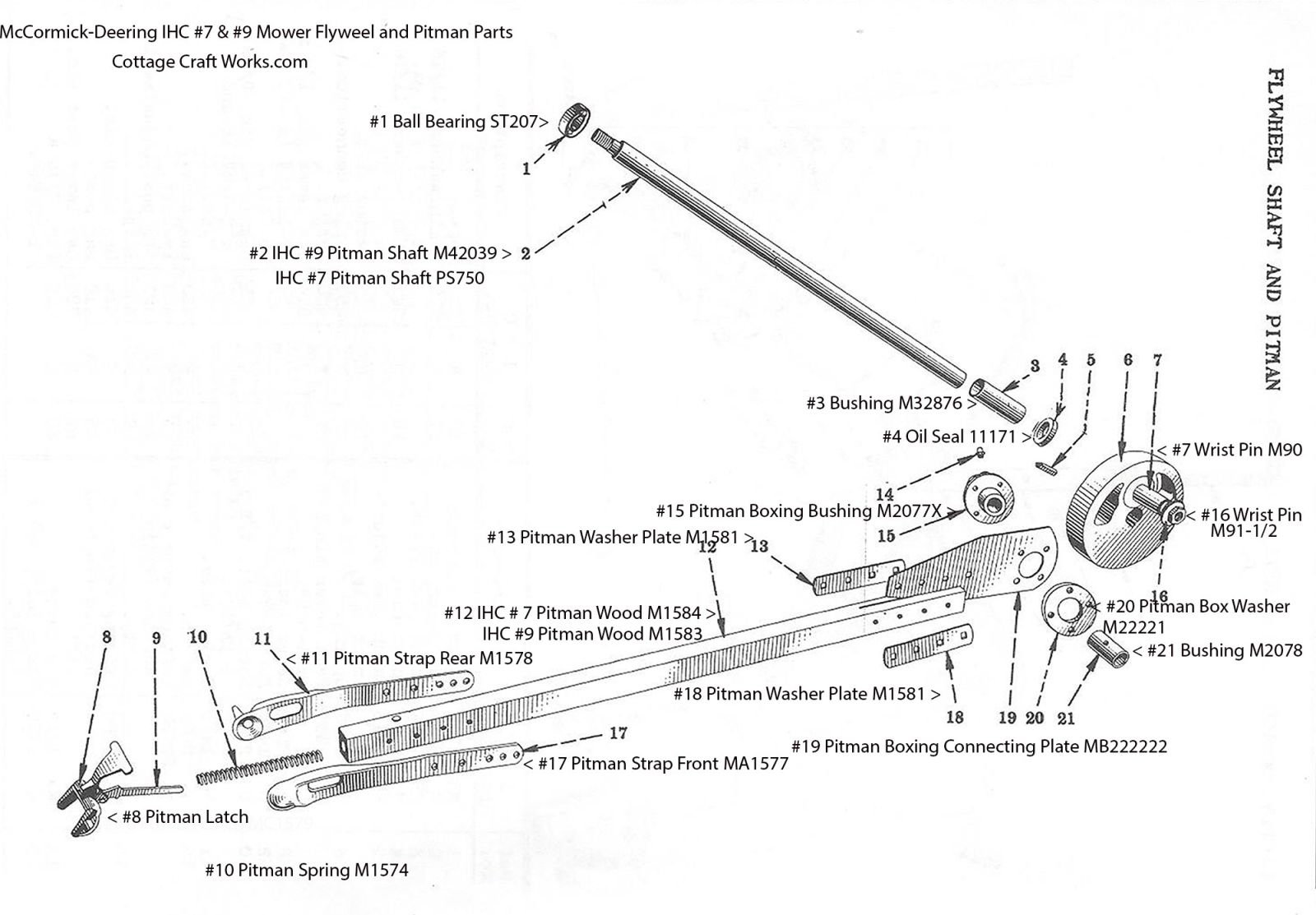

Replacement Pitman parts for vintage IHC, McCormick-Deering #7, and #9 sickle bar mowers. The parts diagram is for the #9 mower, but most parts were interchangeable unless noted specifically to one model.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To deselect hit select parts again.

We do offer pitman connectors in single and double-bearing units. Click Here for more information.

Read more below >


Customizable Options:

Description / IHC Mower Pitman Parts

High-wear available parts are listed below mostly by the original McCormick-Deering Parts manuals. Use the drop-down boxes to select the parts needed.

#1 Pitman Shaft Ball Bearing ST207. This bearing is also used on the clutch shaft.

#2 Pitman Shaft, for IHC #7 use PS750 for IHC #9 use M42039

#3 Pitman Shaft Bushing M32876

#4 Pitman Shaft Oil Seal for 1-1/8” shaft 11171

#7 Wrist Pin M90 (4-1/16" long, 5/8" threaded end, 1" bearing shaft, and a 7/8" insert pitman flywheel end).

#8 Pitman Latch MC1579 (Includes the #9 tail rod that fits inside the Pitman Spring M1574)

#10 Pitman Spring M1574

#11 Pitman Rear Strap M1578

#12 Pitman Wood, for IHC #7 use M1584 for IHC #9 use M1583. The #7 is 30-7/8" Long and the #9 is 33-5/8" Long.

#13 & #18 Pitman Washer Plate M1581

#15 Pitman Boxing Bushing M2077X

#16 Wrist Pin Nut M91-1/2

#17 Pitman Front Strap MA1577

#19 Pitman Boxing Connecting Plate MB222222 is 3-3/4" wide x 11" long with a 1-9/16" hole. It is a 4-hole bearing mount, for a 3-hole bearing use RB1998, old-style MD42237

#19 New Style Pitman Connecting Plate RB1998 is 3-5/8" wide x 11-1/4" long with a 1-3/16" hole

#19 Old-Style Pitman Connecting Plate MD42237 is 4-1/4" wide x 11-1/4" long with a 2-3/4". The four slotted mounting holes are 2-5/16" center to center.

#20 Pitman Box Washer M22221

#21 Bushing M2078

Our Amish companies have been making replacement parts since 1950 for what many consider antique or junk farm machinery today. In the late 1800s and early 1900s, just about every farm used the same farm equipment providing ample outlets for replacement parts. As most farmers modernized through the 1900s the Amish still depended on horse-drawn equipment as many still do today.

Since this equipment is no longer being manufactured and dealers are no longer stocking parts it becomes difficult to keep this old vintage farm machinery operational. Both Amish and vintage farm machinery implement enthusiasts scour junkyards, farms, and tree lines in search of these long-abandoned implements for restoration.

Cottage Craft Works.com travels deep into the back roads to find Amish companies who are still making the replacement parts to maintain and restore this old-time horse-drawn farm machinery.

Click Here to see all the vintage farm implements and replacement parts available. We also carry new improved single and double-sealed bearing pitman connectors that eliminate the original boxing bushing.

A note on shipping cost: If you are just needing a small part such as a bolt, nut, or shim please contact us to order, otherwise the shipping calculator is set assuming that several parts will be ordered from this section at the same time.

These replacement parts have very little markup for us, especially when we just sell one item like a bolt and nut. In order to help defray the time and cost to process, credit card fees, and the labor to pack and transport to the post office, regardless of how much it cost to ship, we do charge a minimum $14.50 base rate for shipping and handling fees even if it is a small part.
