IHC Mower Lifting Device Parts

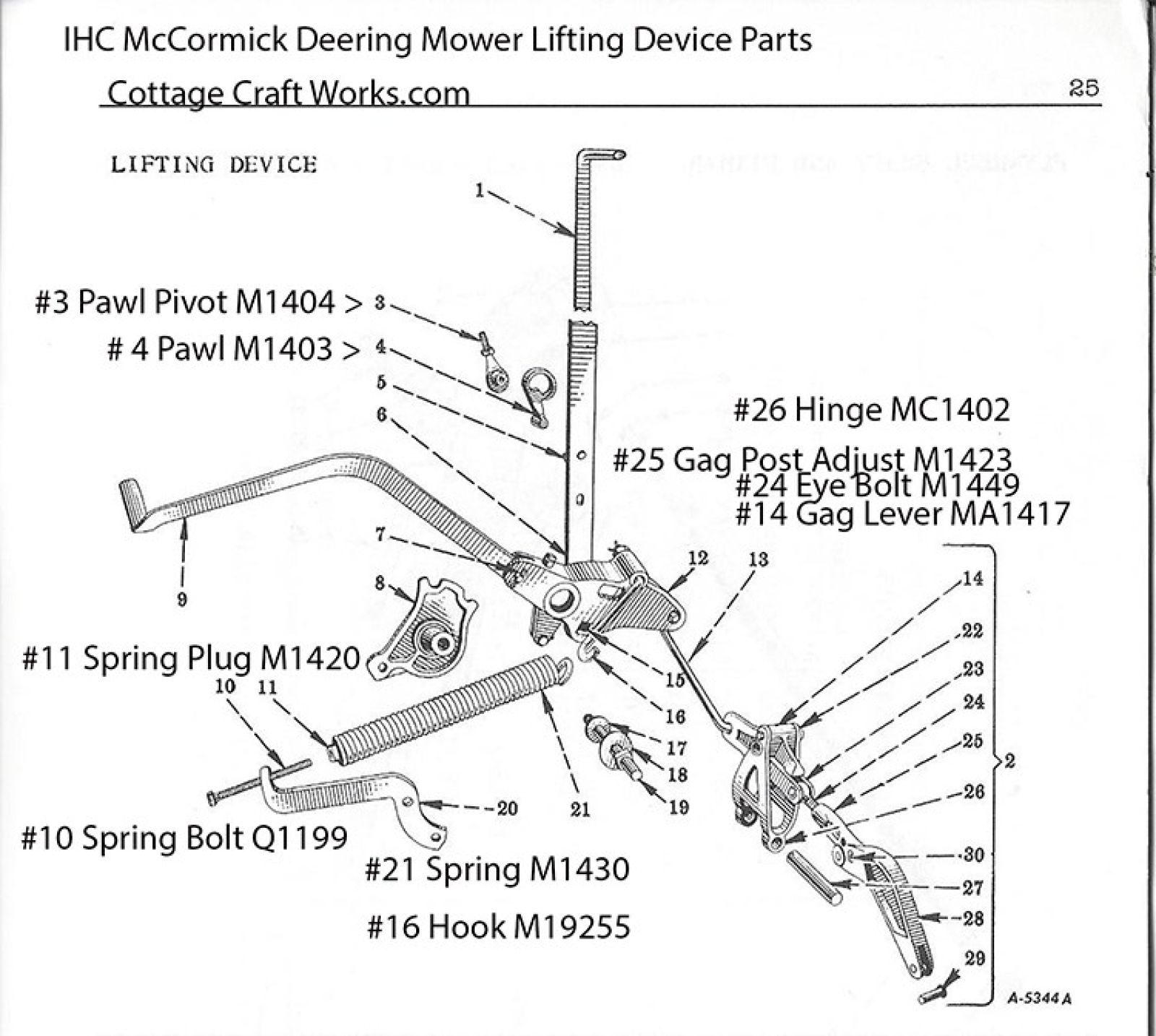

Replacement parts for vintage McCormick-Deering #7 and #9 sickle bar mower-lifting device. The parts diagram is for the #9 mower, but most parts were interchangeable unless noted specifically in one model.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To deselect hit select parts again.

Read more below >


Customizable Options:

Description / IHC Mower Lifting Device Parts

High wear available parts are listed below mostly by the original McCormick-Deering Parts manuals. Use the drop-down boxes to select the parts needed.

#3 Pawl Pivot M10404

#4 Pawl Pivot M1403

#10 Spring Bolt Q2079

#11 Spring Plug M1420 (this is the threaded insert that screws at the end of the spring for the spring bolt)

#14 Gag Lever MA1417 (fits in the top of the hinge and pivots)

#16 Hook M19255 (holds the spring loop)

#21 Spring M1430 (Note these springs may not fit the original plug, recommend ordering M1420 plug and Q2079 bolt)

#24 Eye Bolt M1449 (fits the end of the Gag Post Adjustment Block)

#25 Gag Post Adjustment M1423 (threaded end fits the Eye Bolt)

#26 Hinge MC1402

Our Amish companies have been making replacement parts since 1950 for what many consider antique or junk farm machinery today.  In the late 1800s and early 1900s, just about every farm used the same farm equipment providing ample outlets for replacement parts. As most farmers modernized through the 1900s the Amish still depended on the horse-drawn equipment as many still do today.

Since this equipment is no longer being manufactured and dealers are no longer stocking parts it becomes difficult to keep this old vintage farm machinery operational. Both Amish and vintage farm machinery implement enthusiasts scour junkyards, farms, and tree lines in search of these long-abandoned implements for restoration.

Cottage Craft Works.com travels deep into the back roads to find Amish companies who are still making the replacement parts to maintain and restore this old-time horse-drawn farm machinery.

Click Here to see all the vintage farm implements and replacement parts available.

A note on shipping cost: If you are just needing a small part such as a bolt, nut, or shim please contact us to order, otherwise the shipping calculator is set assuming that several parts will be ordered from this section at the same time.

These replacement parts have very little markup for us, especially when we just sell one item like a bolt and nut. In order to help defray the time and cost to process, credit card fees, and the labor to pack and transport to the post office, regardless of how much it cost to ship, we do charge a minimum of $14.50 base rate for shipping and handling fees even if it is a small part.
