IHC GD Corn Binder Right Gatherer Parts
Aftermarket replacement parts for IHC McCormick-Deering Ground Driven Corn Binder Gatherer Upper and Lower Right Parts.
Parts are being manufactured by an Amish company located in PA. For years, the New McCormick-Deering IHC Corn Binders have been the favorite among Amish communities. These parts are being made to keep the old units running.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select more than one part in the same drop-down box, select one to add to the cart, and then select Continue Shopping to add more parts. To deselect, click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / IHC GD Corn Binder Right Gatherer Parts
IHC GD Corn Binder Right Gatherer Parts
You are shopping for the Ground Drive Binder Parts. If you are looking for PTO Binder Parts, please select the PTO category.
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling are based on an average purchase of a few small parts. We charge a minimum flat base rate of $19.95 for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders, including truck freight. We will send you an invoice if needed. Subject to a 10% handling and restocking fee for unpaid invoices in 15 days.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or modern communication methods, so orders may take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts, either, as the shops also sell to Amish machine shops across the country. Occasionally, new parts will need to be made before the order can be shipped.
Prices are subject to change without notice. A 25% restocking fee applies to returned parts.
Using the drop-down boxes, please select one part per page. Add it to the cart, then return to the same page to add more parts.
Available Parts
Parts designated for right- or left-hand orientation, viewed from the rear of the machine looking forward.

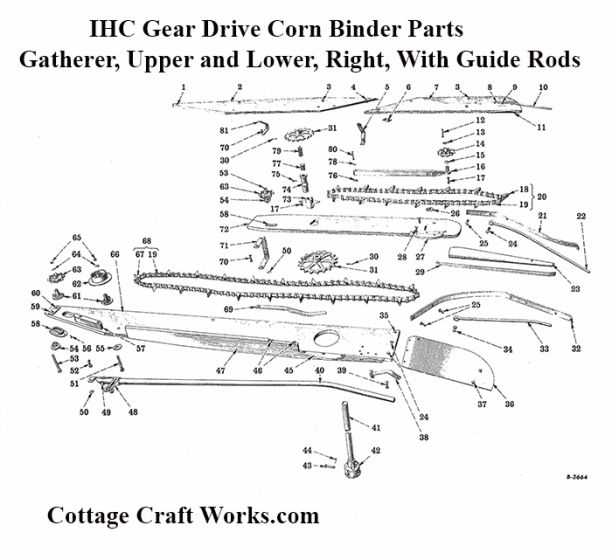

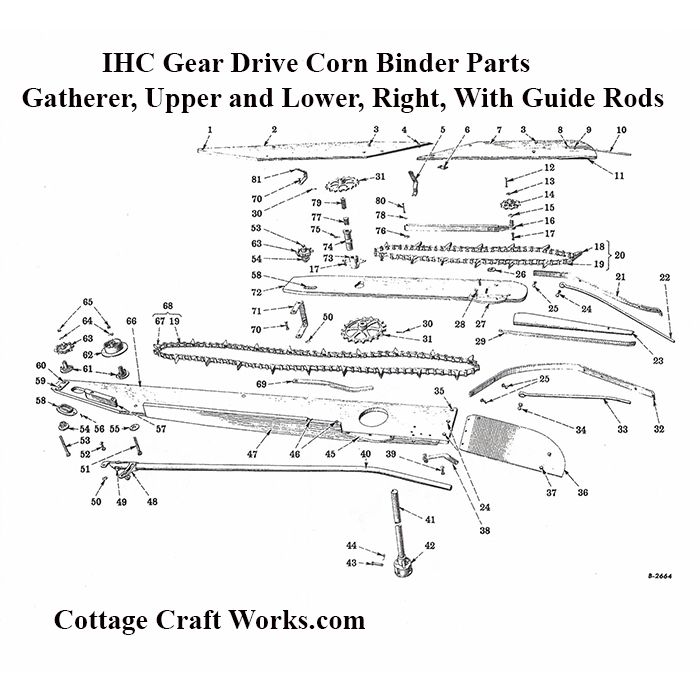

Gatherer Upper and Lower Right
1. CA678-GR** Top Board, Lower
11. CA678 ½-GR** Top Board Stripper
14. C3152-GR*** Sprocket, 10 teeth
16. C23946-GR** Chain Guide (Top Right)
20. C698-GR Gathering Chain Top, Right 108”
27. CB33141-GR Top Chain Stripper, Right
31. C3053-GR** Sprocket 18 teeth
36. CA13145-GR Chain Board Extension
41. C13139-GR Gathering Shaft, Upper Right
42. C3046-GR Shaft Coupler, external
45. C33143-GR Gathering Chain Stripper, Right
54. CA674-GR***** Chain Tightener 8 Teeth
58. C3372-GR*** Chain Tightener Segment
61. C31-GR** Chain Tightener Stud
62. CB412-GR** Chain Sheave
63. CA29-GR*** Sprocket 8 Teeth
66. CB33151-GR** Chain Board, Lower Right
69. C23335-GR*** Chain Stripper
74. C3471-GR*** Shaft Box Housing, Upper
77. C701-GR**** Roller Bearing
79. C589-GR** Roller Bearing
