IHC GD Corn Binder Left Gatherer Parts
Aftermarket replacement parts for IHC McCormick-Deering Ground Driven Corn Binder Gatherer Upper and Lower Left Parts.
Parts are being manufactured by an Amish company located in PA. For years, the New McCormick-Deering IHC Corn Binders have been the favorite among Amish communities. These parts are being made to keep the old units running.
Priced a la carte, using the drop-down boxes. Select the parts needed, and the prices will incrementally add for each part selected. Select multiple items in the same drop-down, then choose one to add to the cart. Select continue shopping to add more items. To deselect, click on "Please Select" again.
Additional Shipping may be required.
Read more about available parts and shipping below the drop-down boxes >
Description / IHC GD Corn Binder Left Gatherer Parts
You are shopping for the Ground Drive Binder Parts. If you are looking for PTO Binder Parts, please select the PTO category.
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling are based on an average purchase of a few small parts. We charge a minimum flat base rate of $19.95 for all items, regardless of size. This covers the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping charges may apply to larger orders, including truck freight. We will send you an invoice if needed. Subject to a 10% handling and restocking fee if not paid in 15 days.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or modern communication methods, so orders may take a bit longer to receive, package, and ship. We are also unable to maintain an electronic parts inventory, as the shops sell to Amish machine shops nationwide. Occasionally, new parts will need to be made before the order can be shipped.
Prices are subject to change without notice. A 25% restocking fee applies to all returned parts.
Using the drop-down boxes, please select one part per page. Add it to the cart, then return to the same page to add more parts.
Available Parts

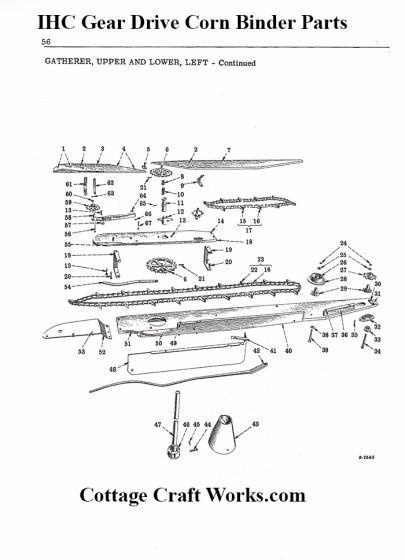

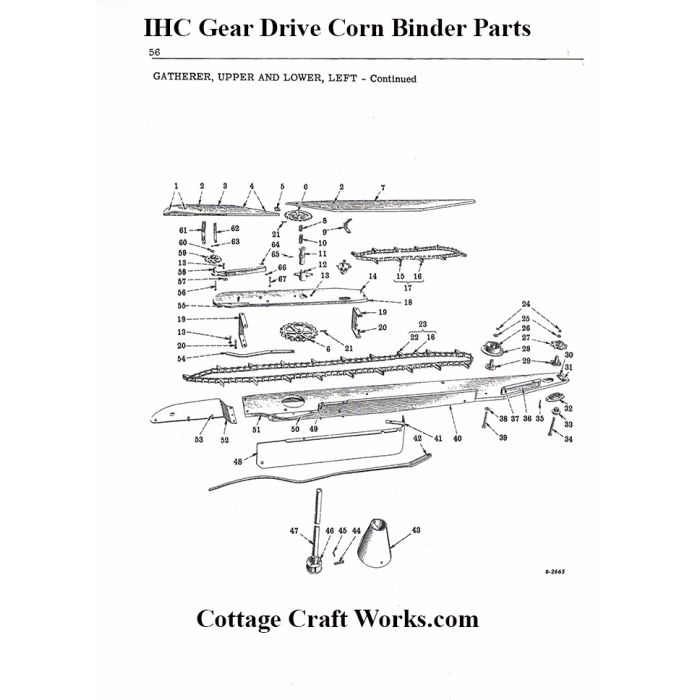

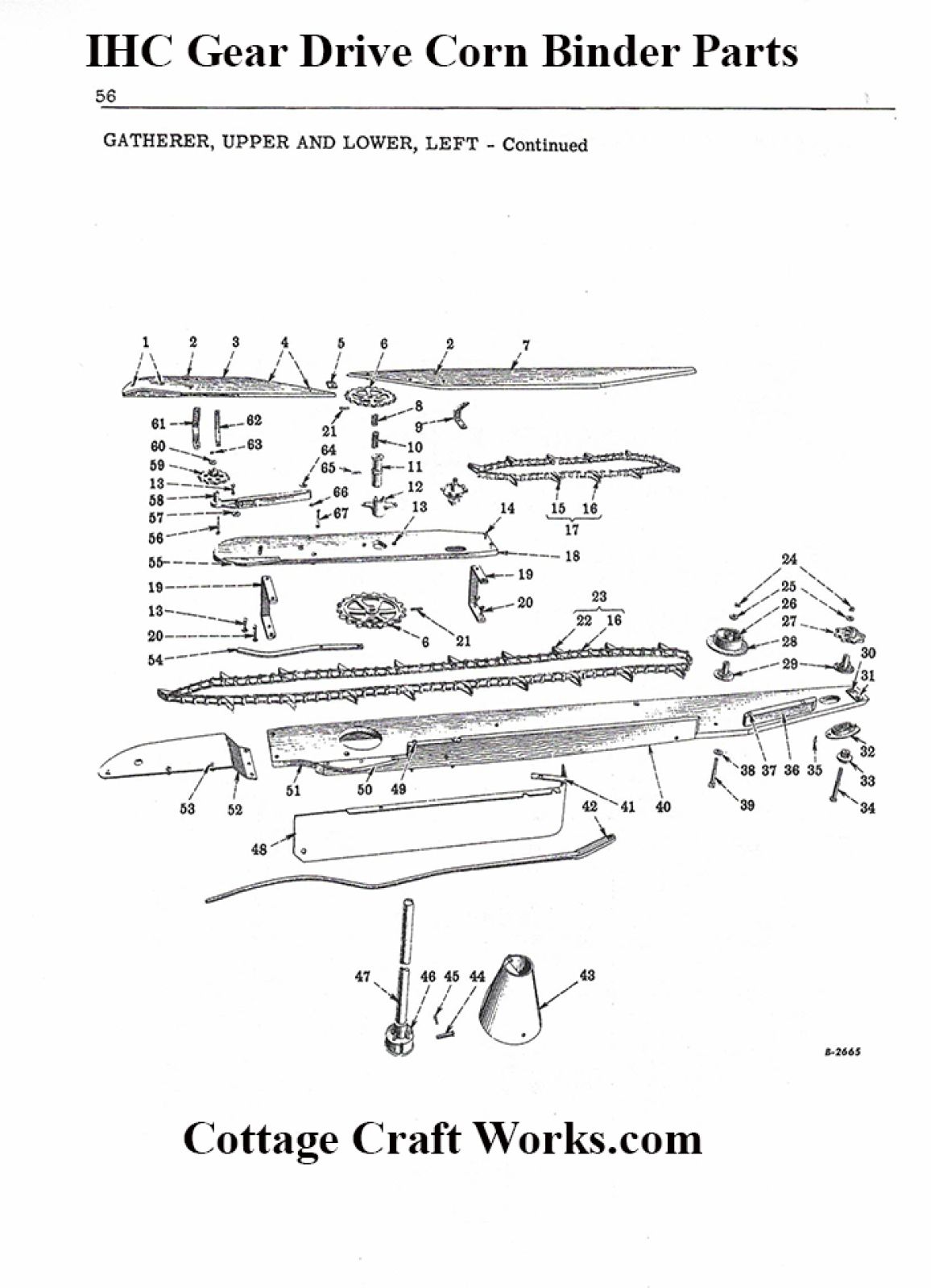

Gathering, Upper and Lower Left
3. CA677-1/4** Top Board Upper Left
6. C3053-GR**** Sprocket 18 teeth
7. CA677-GR** Top Board
8. C701-GR** Roller Bearing
10. C589-GR** Roller Bearing
11. C3471-GR*** Shaft Box Housing
17. C699-GR** Chain 84”
18. CB33157-GR Top Board, Left
27. CA29-GR*** Sprocket, 8 teeth
28. CB412-GR ** Chain Sheave
31. C23321-GR** 4-L Board End Plate
32. C3372-GR*** Chain Tightener Segment
33. CA674-GR***** Pinion, 8 teeth
42. CA904-GR** Butt Fender Rod
43. C13151-GR** Cone Coupling Shield, Left
47. C13140-GR** Gathering Shaft, upper, left
48. C13158-GR** 4-L Board Breastplate Shield
50. C33144-GR** Chain Stripper, left
54. C23335-GR*** Chain Stripper
55. C33142-GR Top Chain Stripper
58. C23947-GR** Top Chain Guide-Sheild, Left
59. C3152-GR*** Chain Tightener Sprocket 10 Teeth
