Horse Drawn Vehicle Carriage, Buggy Wheel Hub Parts
Roller bearings, races, axle nuts, washers, cotter pins, oil seals, and hub caps for horse-drawn buggies, carriages, wagons, and carts. These wheel hub parts are widely used on Amish Indiana, Ohio, and Pennsylvania buggies including those manufactured by the Carriage Machine Shop in Bird-in-Hand PA.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will be incrementally added for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.
For a Complete Bearing & Seal Kit for 1” Axles including A6075 and 07093 bearings Click Here under Wagon Wheels CLICK HERE
Additional Shipping may be required.
Read more below >
Description / Horse Drawn Vehicle Carriage, Buggy Wheel Hub Parts
It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will invoice you for additional shipping if needed.
Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.
Prices are subject to change without notice.
Purchase wheel grease locally due to problems with shipping.

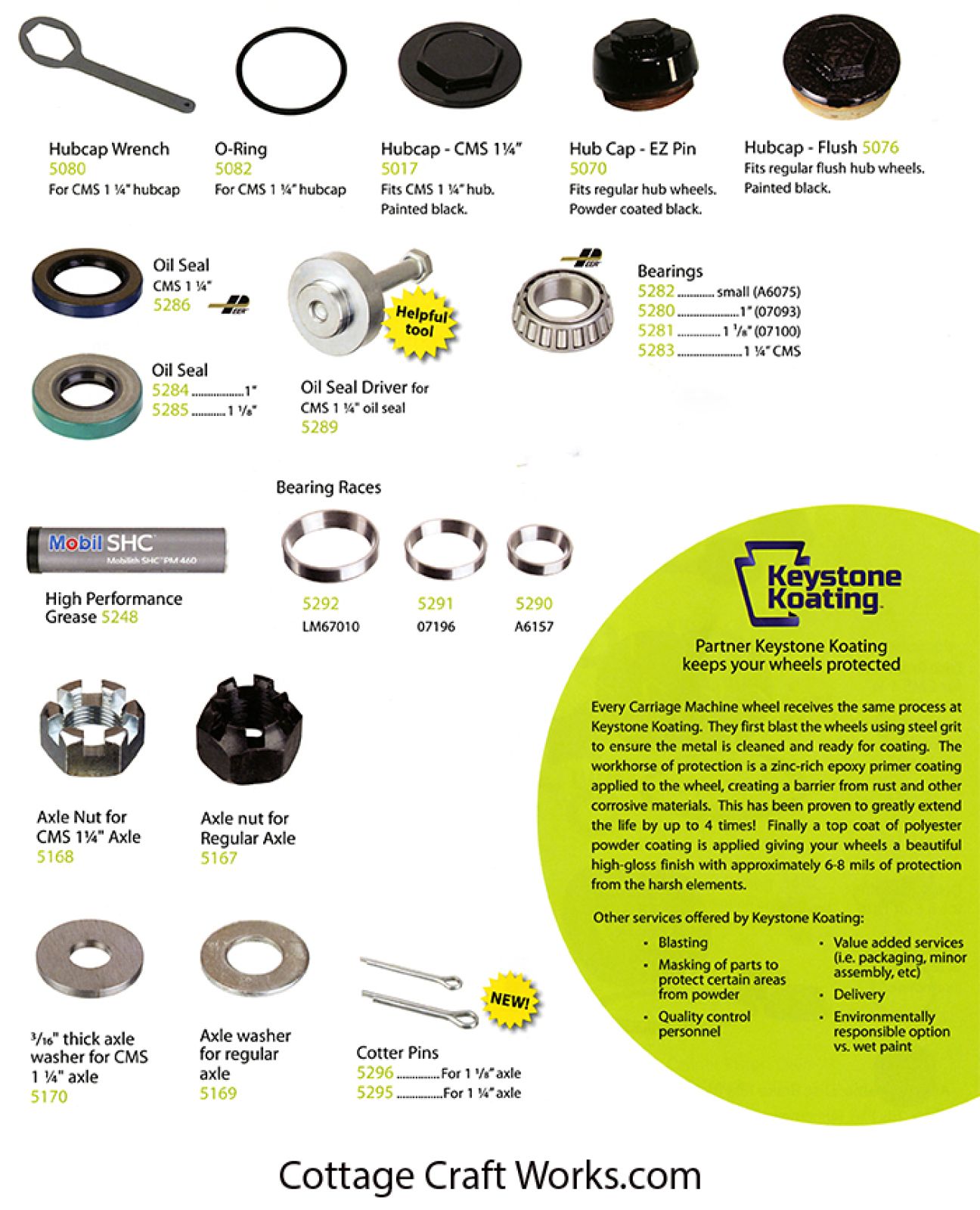

Roller Bearings
5282- A6075 3/4” x 3/8” W x 1-5/16 O.D. x ¾” Bore use with A6175 5290 Race
5280-07093 Taper Roller Bearing .9375” Bore x 0.5614” Width 1 pound use with 5291 Race
5281- 07100 used on a 1-1/8” axle turned down to 1.000” I.D. x 0.561 Width. Use with 5291 Race
5283-LM6748 used on Carriage Machine Shop 1-1/4” Axles 1.250” I.D. x 2.328” O.D. Use with 5292 Race.
Bearing Races
5290-A6157 1.5745” I.D. x 0.3750 Width. Use with 5282 roller bearing
5291-07196 Race 1.9687” O.D. x 0.375” Width. Use with 5280 roller bearing
5292-LM67010 Race 1.250” I.D. x 2.328” O.D. Use with 5283 roller bearing.
Oil Seals
5286 Carriage Machine Shop 1-1/4” Oil Seal
5284 1” Oil Seal
5285 1-1/8” Oil Seal
Oil Seal Driver
5289-Designed as a useful tool to drive Carriage Machine Shop 1-1/4” Oil Seals.
Axle Nuts
5168 Axle nut for Carriage Machine Shop 1-1/4” Axle
5167 Axle nut for Standard 1” Axles
Axle Washers
5170 3/16” thick washer for Carriage Machine Shop 1-1/4” Axles
5169 Standard Axle Washer for 1” Axles.
Cotter Pins
5296 for 1-1/8” Axles
5295 for 1-1/4” Axles
Hub Caps
5017-Carriage Machine Shop 1-1/4” hubcap, painted black.
5070-EZ Pin hub cap fits standard wheels, powder coated black.
5076-Fits standard flush hub wheels painted black. (Does not require O-Ring)
O-Ring
5082-Carriage Machine Shop 1-1/4” Hubcap.
5080- Fits Carriage Machine Shop Octagon 1-1/4” hubcaps.
A note on shipping cost: If you are just needing a small part such as an o-ring, nut, or hubcap please contact us to order, otherwise the shipping calculator is set assuming that several parts will be ordered from this section at the same time.
These replacement parts have very little markup for us, especially when we just sell one item like a bolt and nut. In order to help defray the time and cost to process, credit card fees, and the labor to pack and transport to the post office, regardless of how much it cost to ship, we do charge a minimum $14.50 base rate for shipping and handling fees even if it is a small part.
