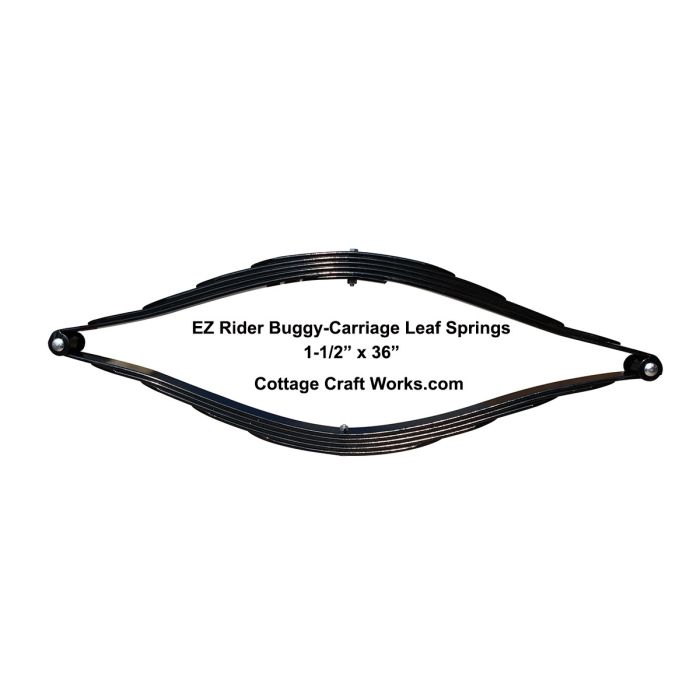

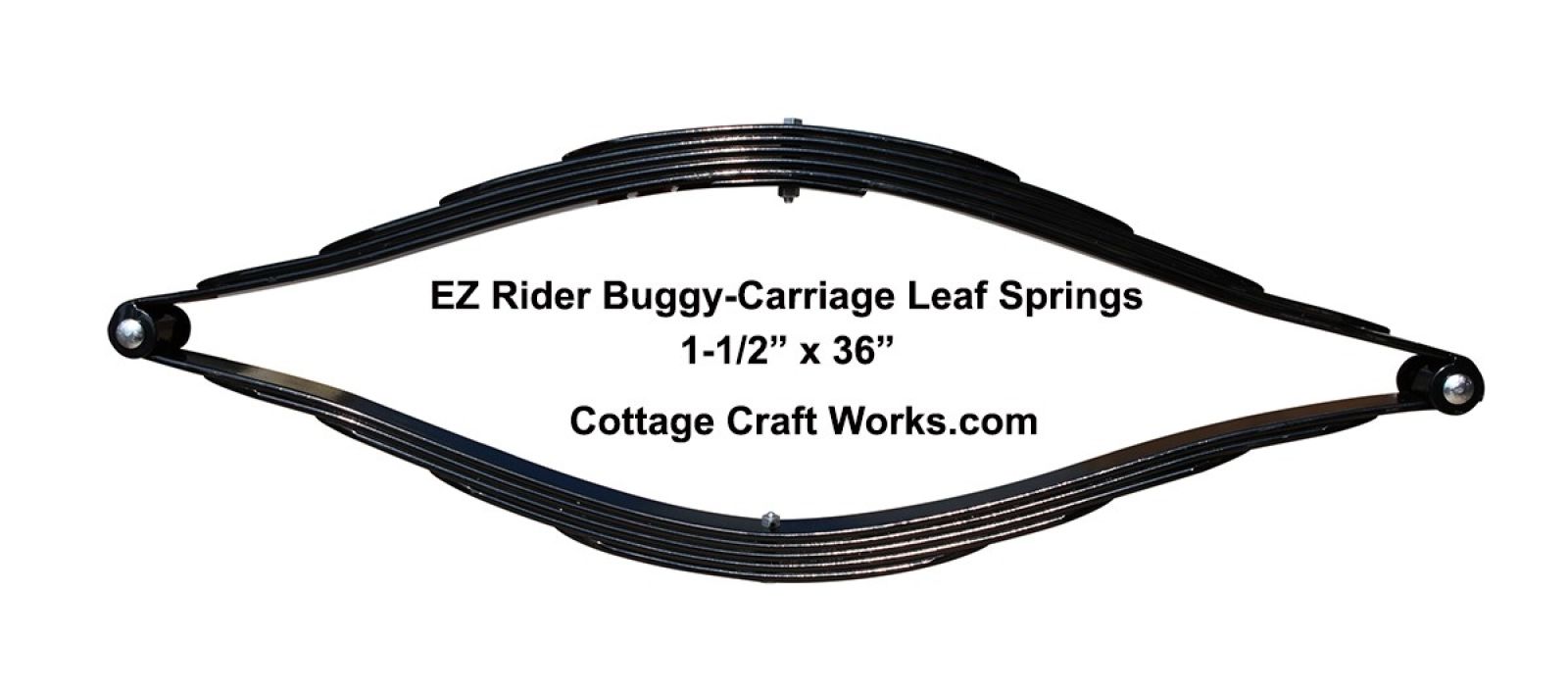

EZ Rider Buggy, Carriage Leaf Springs, 36 Inch

In stock
SKU
636
$224.87

Smooth riding buggy, carriage leaf springs for use on carriages, buggies, and wagons. The 1-1/2” width makes it capable of handling heavier weights while providing a softer ride. Measures 36” x 1-1/2” W x 11-3/4” T, five-section leaf Spring

Priced as one spring assembly, order 2 springs for a set.

This leaf spring is equipped with a layer of poly liner between each leaf to reduce friction, wear and noise.

Read more below>

EZ Rider Buggy, Carriage, Leaf Springs
EZ Rider Buggy, Carriage, Leaf Springs Leaf Spring Detail Leaf Spring Bolt Detail

Details

Leaf springs are not specifically rated for a maximum weight capacity rather they are rated based on the amount of weight it takes to compress the springs.  At 130 lbs. the spring should be expected to compress 1”, at 265 lbs. 2 inches, and at 400 lbs. 3”.

Springs are powder coated with a primer coat of zinc-rich primer applied and then a gloss black topcoat. This combination of powder coating has proven much more durable over a traditional powder coat finish to provide rust protection.

Installation of buggy or wagon springs and axles may not be for the novice builder as proper alignment of spindles and wheels is critical so that they run true and do not produce uneven wear or a dangerous operating condition.

We also carry the wooden spring bars, axle caps, and head blocks that will fit these springs.

USA Amish manufactured
