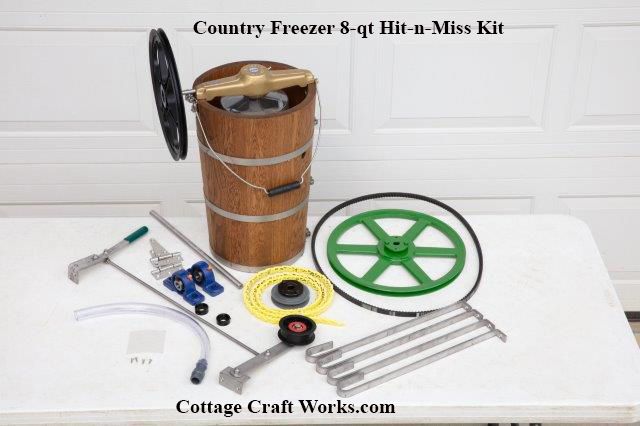

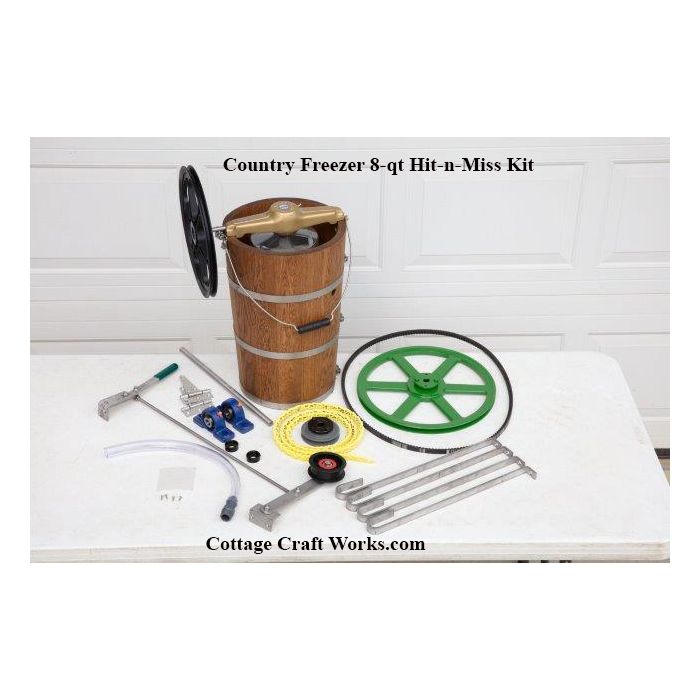

Country 8-QT Hit-N-Miss Freezer Parts Kit

The antique 3/4 HP Maytag engines generally produce 400-500 RPMs, in contrast, the newer 2 to 2-1/2 HP gas engines and a 3/4 HP electric motor can generate around 3400-3600 RPMs.  In order to reach the desired 40-50 RPM at the freezer pulley with this kit you will need to reduce the RPM coming off a newer motor using some type of gear reduction box down to the 400-500 RPM range to use it with this kit to avoid damage to the gears and or personal injury.

The kit includes a CF08 8-qt Country Freezer with 12” composite Pulley (Choice of Oak or Poly Tub)

4 x Freezer Stainless Hold Down Brackets

1 x Overflow Hose for Freezer (No Drain)

2 x 4” SS Hinges for dump platform

1 x 5/8” SS Jack Shaft with Belt Tightener

2 x 5/8” Pillow Block Bearings

1 x 2.5” x 5/8” Bore Small Jack Shaft Pulley (Steel)

1 x Large Jack Shaft Pulley 12” x 5/8” Bore (Steel)

1 x 66” Link-Belt (Goes from small Jack Shaft Pulley to Freezer)

1 x AX63 V-Belt (Goes from engine pulley (not included) to large Jack Shaft Pulley

Optional

Upgrade to Steel Pulleys

Link-Belt Colors Yellow, Green, Black, or Red

The kit does not include instructions, a wagon, the freezer platform, nuts and bolts, or any other hardware.
