Country 20-qt Wagon Mount Electric Ice Cream Freezer

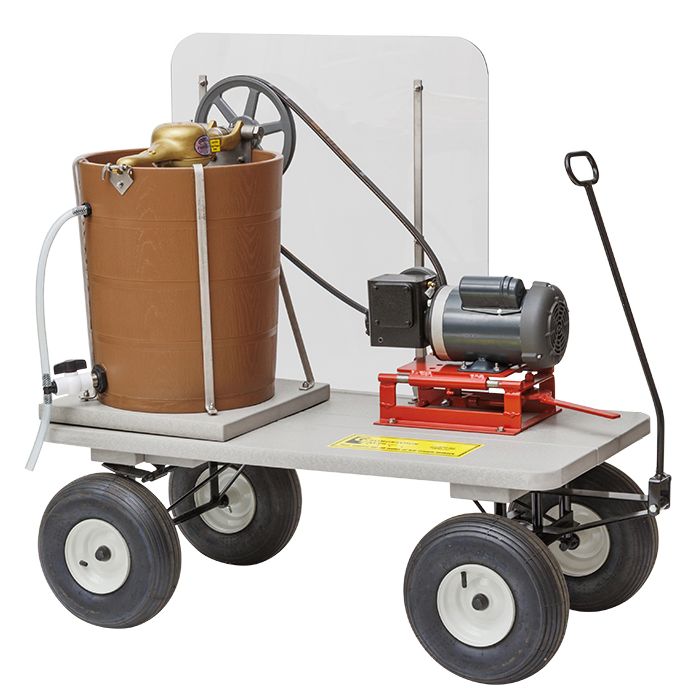

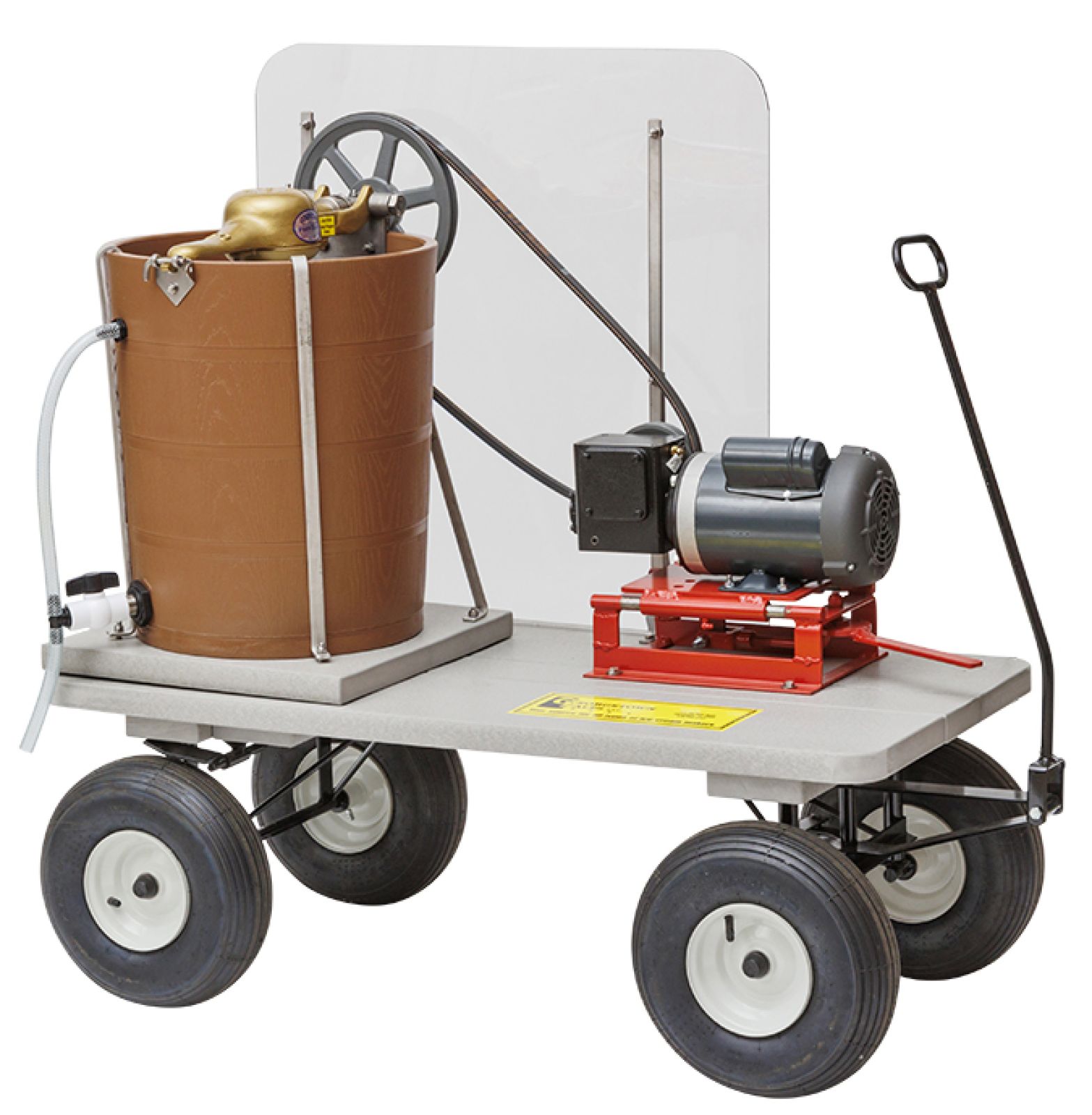

Country 20-Qt wagon-mounted ice cream freezer powered by a ¾-hp 110-volt electric motor. Comes mounted on an easy-to-pull Amish-made poly wood wagon with quality pneumatic tires and a parking brake.
A perfect setup for a homemade ice cream freezer for events, venues, church socials, and festivals
Does not include shipping.
Read more below >
Description / Country 20-qt Wagon Mount Electric Ice Cream Freezer
Now with an all-poly tub. This takes the worries out of potential leakage due to the drying out of the wood staves. The wooden tub ice cream freezers had to be maintained to prevent wood shrinkage. This was a problem in dry atmospheres or when stored in hot and dry garages.
The recycled poly wagon bed is becoming popular because of its resistance to spilled water especially salt water allowing the finish to remain like new.
Includes a heavy-duty gearbox on the motor. B-section pulleys and belts from the gearbox to the freezer. An onboard amp meter indicates the freezing status.
The lever slide clutch makes it easy to place the freezer in and out of gear.
The freezer is mounted on a hinged platform for easy tip-over to remove the ice.
Plexiglass viewing window protects pinch points from belts and pulleys.
Dimensions: 54” L x 24” W x 41” H. Net weight 274 lbs., crated shipping weight 349 lbs.
Why Country Freezers are your best quality purchase:
- Amish handcrafted (the old-time quality, the company does not try to compete with imports)
- Tall design for optimum freezing
- Extra-heavy seamless stainless steel can
- Rustproof manganese-bronze housing
- Rustproof zinc gears
- Stainless steel shaft & handle
- Stainless steel dasher
- ¼-turn slide latch (positive locking)
- All stainless-steel fittings (nothing to rust)
- The freezer Should last a lifetime
- 5-year warranty on all stainless-steel parts
Other Freezer Information
The tub is 21" H x 17-5/8" top diameter x 15-5/8" bottom diameter.
The total height of the machine is 30-3/4". Stainless Steel Can measure 9-1/4” Diameter x 17-7/8” tall and holds approximately 5.1 gallons of liquid, most people will make 4 to 4-1/2 gallons of ice cream so it does not overflow. On average 2 gallons of mix makes 4 gallons of ice cream.
Generally, ice cream will take between 15-45 minutes depending on factors of the first batch or repeat the batch, recipe, etc.
Note: The Country 20 qt freezer complies with NSF/ANSI2 and is certified by NSF International. The NSF stamp is no longer required on the parts and consequently, there is no longer an additional fee. If needed, we can obtain a copy of the NSF certification for commercial applications.
The freezer will need to be sent by truck freight and is priced F.O.B. or you may select a shipping deposit above. We will refund the difference or contact you if the actual shipping is expected to exceed 10% of the deposit.
The unit will come with grease in the gear frame. Use the drop-down box at the top of the page to add a 14 oz tube of food-grade grease for the gearbox for ongoing lubrication. The tube fits a regular grease gun.
The angle gearbox also comes with oil in the unit. It is an industrial-grade unit and will not likely need new oil unless it leaks or the unit is used on a daily basis. It uses 18 oz. of 80W90 gear oil or Mobil SHC 634 Oil
If you should ever need a new belt it uses a Dayton B67 V-Belt, Outside Length 70" - 6A157 | 6A157 - Grainger
