Country 20-QT Hit-N-Miss Freezer Wagon Kit
Build your own Country 20-qt Hit-N-Miss Ice Cream Freezer Wagon. Designed for the John Deere Model E Hit-N-Miss Antique Motors. Takes away the headaches of trying to determine the pulley ratio to reduce the 500-600 RPM output down to the recommended 40-60 RPMs at the freezer.
The kit comes with a complete as listed below.

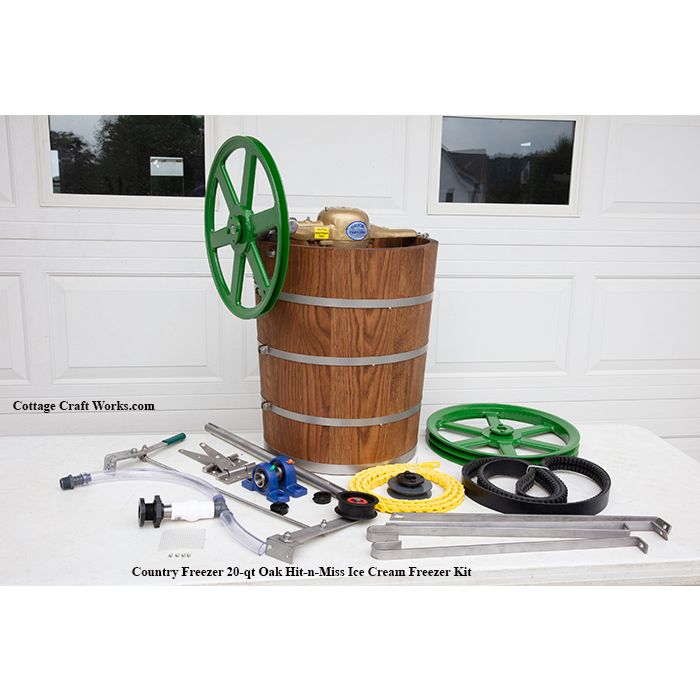

Description / Country 20-QT Hit-N-Miss Freezer Wagon Kit
1 x 20-qt Country Freezer with the option of the standard oak tub or the new poly tub and a 16” Pulley.
1 x Double 1” x 16” Jack Shaft pulley.
1 x Double 2BX70 V Belt that goes to the engine pulley and the 16” double jack shaft Pulley. (Engine Pulley Not Included)
1 x 1” Stainless 23” Jack Shaft and bearing pillow blocks.
1 x Small Jack Shaft Pulley.
1 x Belt Tightener that serves as a clutch. (Option to upgrade to clutch)
1 x 92” Link Belt. (Goes from the small jackshaft pulley to the freezer Pulley)
4 x Stainless Hold Down Brackets
2 x 6” SS Platform Hinges
1 x Drain/Overflow Kit
You will need to build your own shielding and brackets to hold the shielding. The kit does not include instructions, a wagon, the freezer platform, nuts and bolts, or any other hardware.
Optional
Link-Belt Colors Yellow, Green, Black, or Red
Upgrade to a Clutch system instead of the tightener +$700
CFO-20 -- 20 Qt. Oak Kit
VCFP-20 - 20 Qt. Poly Kit
