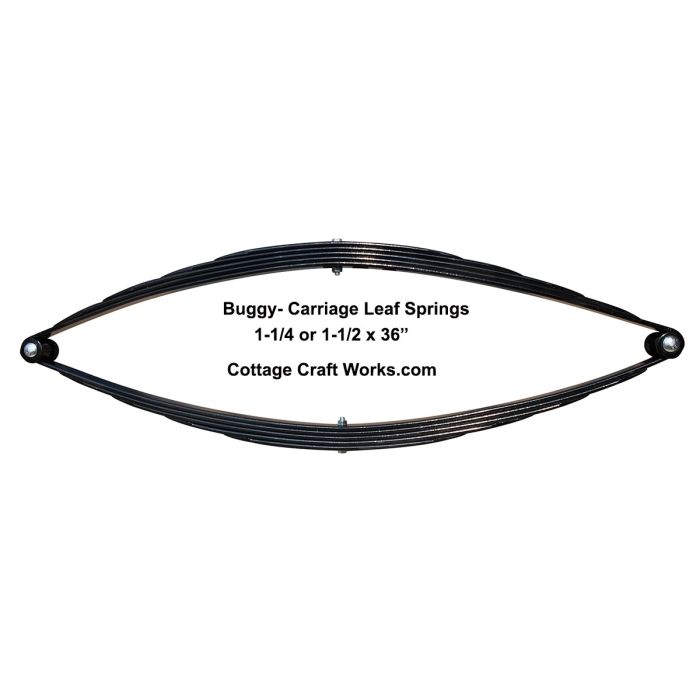

Buggy Leaf Springs, 36 Inch

A popular buggy leaf spring used to build horse-drawn buggies, wagons, and equipment. Normally installed across axle installations but may also be installed as a pair on each side of the vehicle.

36” x 1-1/4” W x 11” T, five-section leaf Buggy Springs. Priced as one spring assembly, order 2 springs for a set.

Springs are not specifically rated for a maximum weight capacity rather they are rated based on the amount of weight it takes to compress the springs. At 126 lbs. the spring should be expected to compress 1”, at 246 lbs. 2 inches, and at 355 lbs. 3”.

Read more below >

SKU 635
  $177.52

Description / Buggy Leaf Springs, 36 Inch

Springs are powder coated with a primer coat of zinc-rich primer applied and then a gloss black topcoat. This combination of powder coating has proven much more durable over a traditional powder coat finish to provide rust protection.

The installation of buggy or wagon springs and axles may not be for the novice builder as proper alignment of spindles and wheels is very critical so that they run true and do not produce uneven wear or dangerous conditions.

We also carry the wooden spring bars, axle caps, and head blocks that will fit these springs. See pictures of the different installations and the parts used. Click Here to see all of our carriage and buggy parts.

#3 3-1/2" Axle Clip #518

#4 Front Axle Clip #1002-1

#10 Easy Rider Head Wood Block #1010

#12 1" Clip Bar #513, 3/8" Square Nut 9830-14-ZN

#14 Spring Clip Plate #631

#15 1-1/2" x 7" Axle Clip

#17 Wooden Spring Bar #1025

#24 4" Axle Clip #519

#26 Rear Axle Clip #1003-1

#27 12" Spring Clip # 629-1

USA Amish manufactured

Shipping Estimator

Estimate Shipping Calculator

Note : * Required Field(s) in the drop-down box options above must be selected to obtain a shipping estimate. Alaska-Hawaii customers contact us. International Customers other than Canada, please use a US Forwarding Agent like MYUS.COM

File(s)

File(s)

Write Your Own Review
You're reviewing: Buggy Leaf Springs, 36 Inch
loader
Loading...

check-circle You submitted your review for moderation.

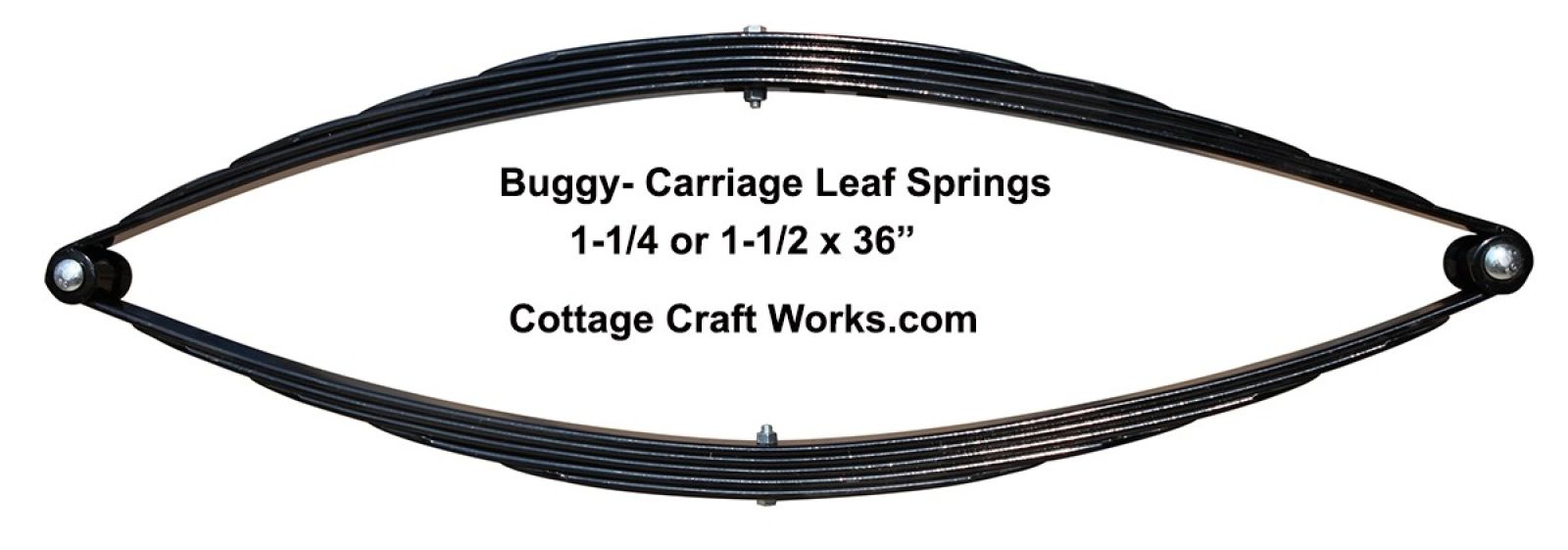

Buggy, Carriage Leaf Springs
