New Idea 314 Sheller Unit Parts

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

Available Parts (Not all the available part pictures are shown)

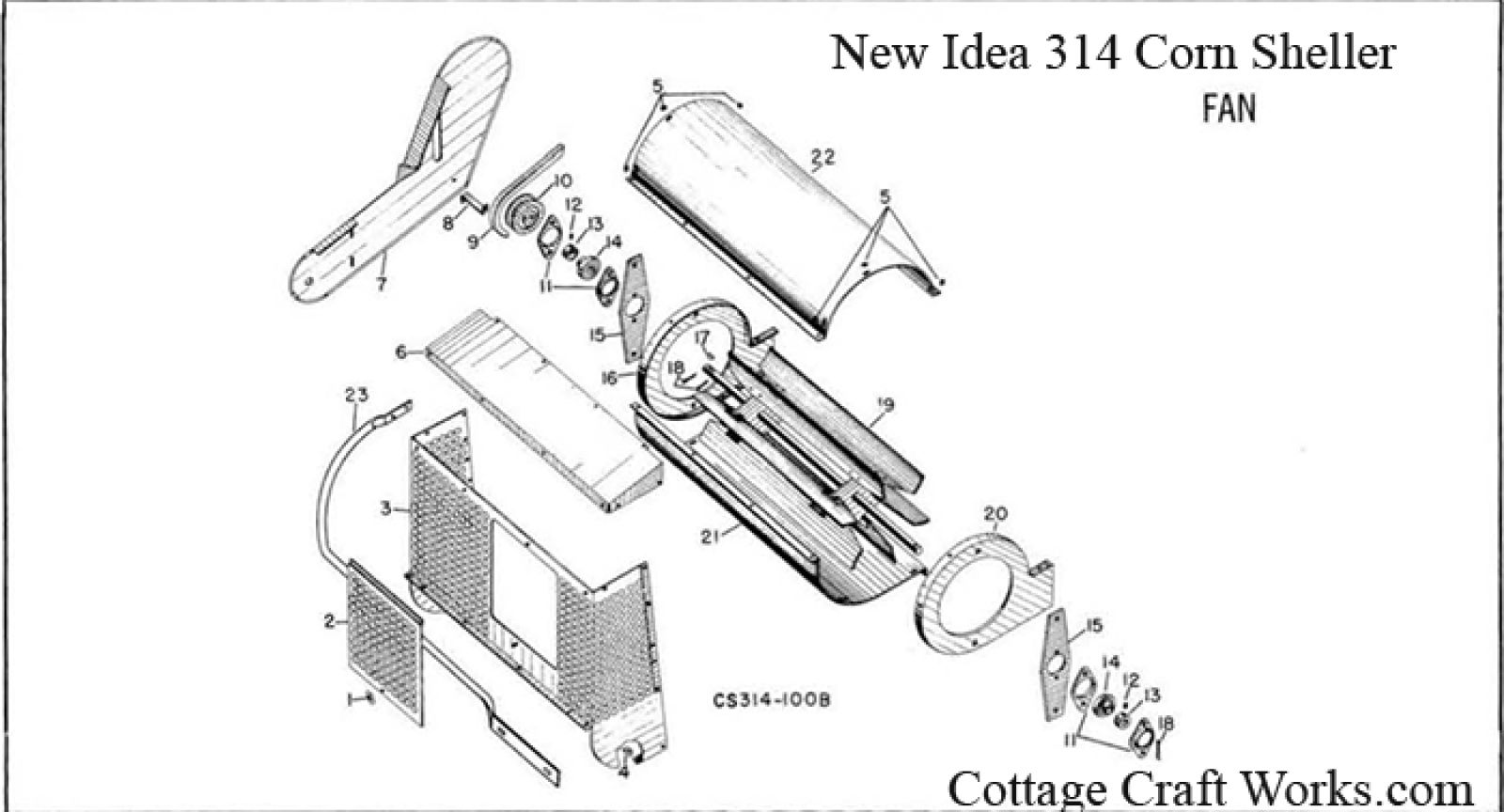

314 Fan

#9 303337 Belt

314 Shaker

#13 304598 Shoe Assembly

#30 304596-303085 Flat Screen

#26 303079 Rod assembly, 5/8" dia. x 30-3/ 8"

#29 303133 Cover Door

314 Side Sheets

#5 302903 Auger pan

#6 302909 Bottom extension

#8 302935 Fan Top Extension

#21 305904 Brace

314 Grain Auger and Throwout

#29 302920 9 tooth sprocket with bushing 010182 - RC 2050 chain

#26 302921 Sliding Clutch

#43 302923 Auger Housing

#36 304362 Grain auger assembly

NA  304363 Auger drive hub

#37 302925 Housing disk

#38 010184 Seal 1-9/16” ID, 2-7/16” O.D.

#39 01083 Snap Ring 2-9/16” O.D.

#40 K4654 Ball Bearing 1-3/16” I.D, 2-7/16” O.D.

#41 308379 13 Tooth Bevel Gear

#42 010185 #13 Woodruff Key 1/8” x ½”

314 COB DISCHARGE AUGER

 #21 302996 Return auger shaft assembly, 1" dia. x 12-9/ 16" long

314 WAGON ELEVATOR AUGER

#3 303161 Auger tube assembly

#8 303174 Head section

#20 K4598 Spring

#17 303662 Paddle, 4" x 2- 1/ 4" x 7 / 64" thick

#18 303416 Spout assembly

#21 303182 Chute assembly

 314 Drive for Auger, Shaker and Fan

#18 303306 Drive Hub with 1" spline bore

#27 303519 8” Pulley 1” Splined

#29 303518 10” Pulley

#28 303520 Belt

314 Hood

#1 303347 Adjusting Strip 15”

#6 303348 Adjusting Strip 21-3/4”

#7 303331 Cover Door

#10 303375 Hood Side Sheet RH

#12 303450 Hood End Sheet Left Narrow

#13 303452 Hood Side Sheet Left Narrow

#11 303456 Trash Slide Sheet Narrow

#15 304837 Ear Corn Slide Sheet RH

314 CYLINDER

#12 303359 14 tooth 21 tooth sprocket assembly, 1- 1/ 4" splined bore, RC 2050 and RC 60 chain

#31 304571 Discharge Gate
