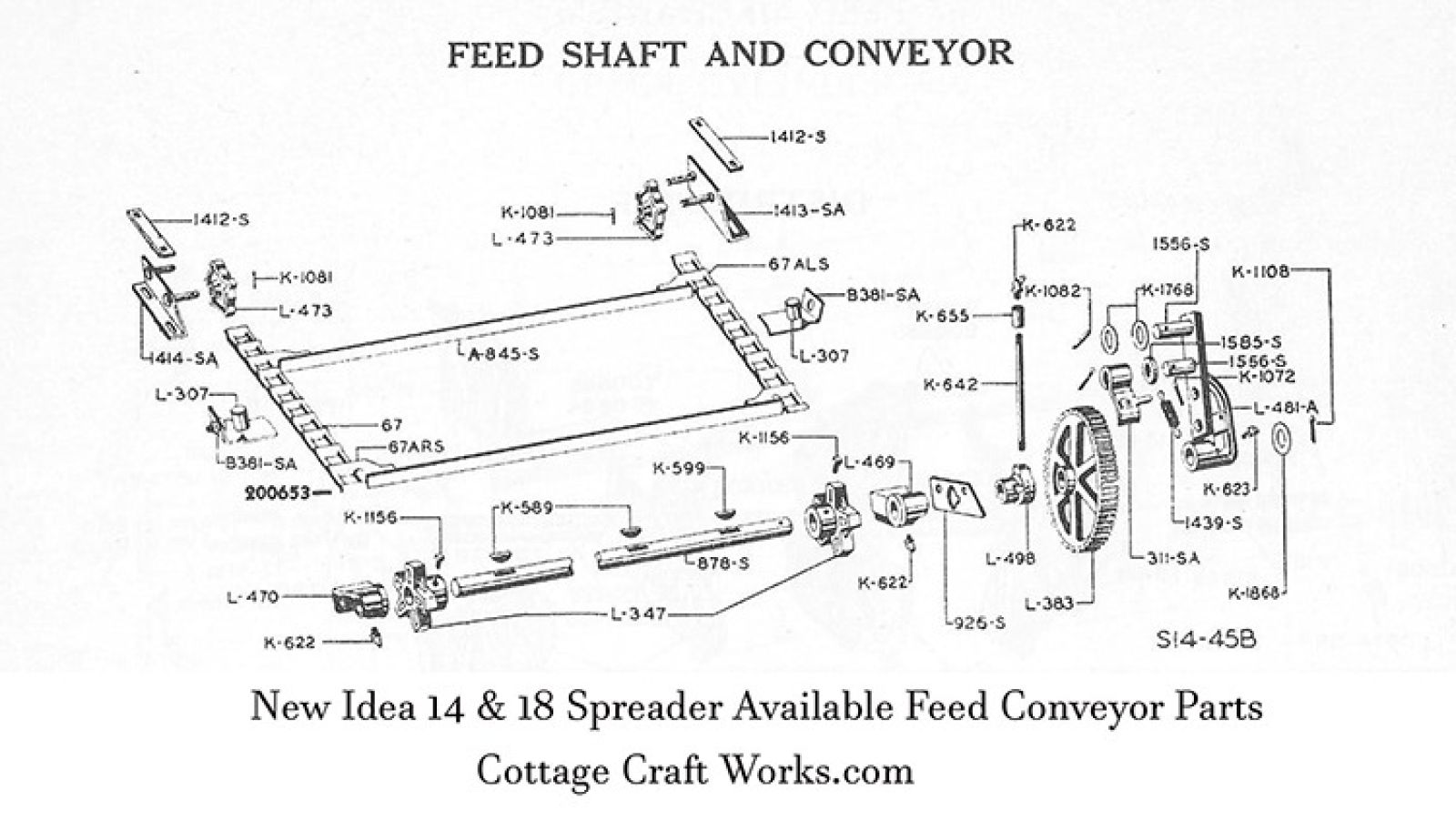

New Idea 14 & 18 Spreader Feed Conveyor Parts
Feed shaft and conveyor parts for vintage New Idea No. 14, 18 Manure Spreaders. Available parts include 5-tooth idler sprocket L-473, conveyor tightener Right 1413-SA, conveyor tightener Left 1414-SA, and extension spring 1439-S
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.
Additional Shipping may be required.
Read more below >
Description / New Idea 14 & 18 Spreader Feed Conveyor Parts
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $14.50 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to reach the Amish shop, have shipping verified, and additional shipping collected, before they will ship.
Available New Idea No. 14, 18 spreader feed shaft and conveyor parts based on original part numbers
*Denotes Special Order Item that may take 3-4 weeks.
Page 1
67H Plain Steel Chain Link
Click Here for a complete web apron
67 ARS Steel Attachment, Left
67 ALS Steel Attachment, Right
K 589-NI3014 No. 13 Woodruff Key 3/16” Thick, 1” Long
K 599 No. 14 Woodruff Key 7/32” Thick, 1” Long
K 851 Washer 1-1/2” O.D., 15/16” I.D., subs 1-1/2” x 1” 18 ga.
K 877 Washer 1-3/4” O.D., 15/16” I.D., 16 gauge
K 1072 Spring Cotter 1/8” Dia., 1” Long
K 1081 Spring Cotter 3/16” Dia., 1” Long
K 1082 Spring Cotter 3/16” Dia., 1-1/4” Long
K 1108 Spring Cotter 3/16” Dia., 1-1/4” Long
K 1156 Set Screw 3/8” Dia., 5/8” Long
Page 2
L 347-NI5008 5 Tooth Feed Sprocket 1-1/16” Bore, uses K 589 Key
L 383-NI5009 Ratchet Wheel 1-1/16” Bore, uses K599 Key
L 469-NI5010 Feed Bearing, Right, 1-1/16” Bore
L 470-NI5011 Feed Bearing, Left, 1-1/16” Bore
L 473-NI9018 5 Tooth Idler Sprocket
L 489-NI5012 Angle Feed Bearing
311 SA-NI5015 Feed Pawl ¼” x 1-1/4” Flat, 5-3/4” Long
878 S-NI5014 Shaft 1-1/16” Rod, 44-5/8” Long, uses K589 & K599 Keys
926 S-NI5017 Angle Feed Bearing Plate
*1413 1/2S Conveyor Tightener w/studs, Right 2-12” x 1-1/2” x 3/16”, 9” L
*1414 1/2S Conveyor Tightener w/studs, Left 2-12” x 1-1/2” x 3/16”, 9” L
*1439 Extension Spring, 20 Coils, 5/8” O.D., 2-1/4” Long
*Denotes Special Order Item that may take 3-4 weeks.
Click Here to see all of our 14 & 18 spreader parts.
Click Here to see all of our available parts for different New Idea spreader models.
