New Holland Haybine Replacement Parts

New Holland® is a Registered Trademark of CNH Industrial America LLC which does not manufacture or endorse these parts.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum of $14.50 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.

Prices are subject to change without notice.

Please select one part per page.  Add it to the cart and then return for more parts on the same page.

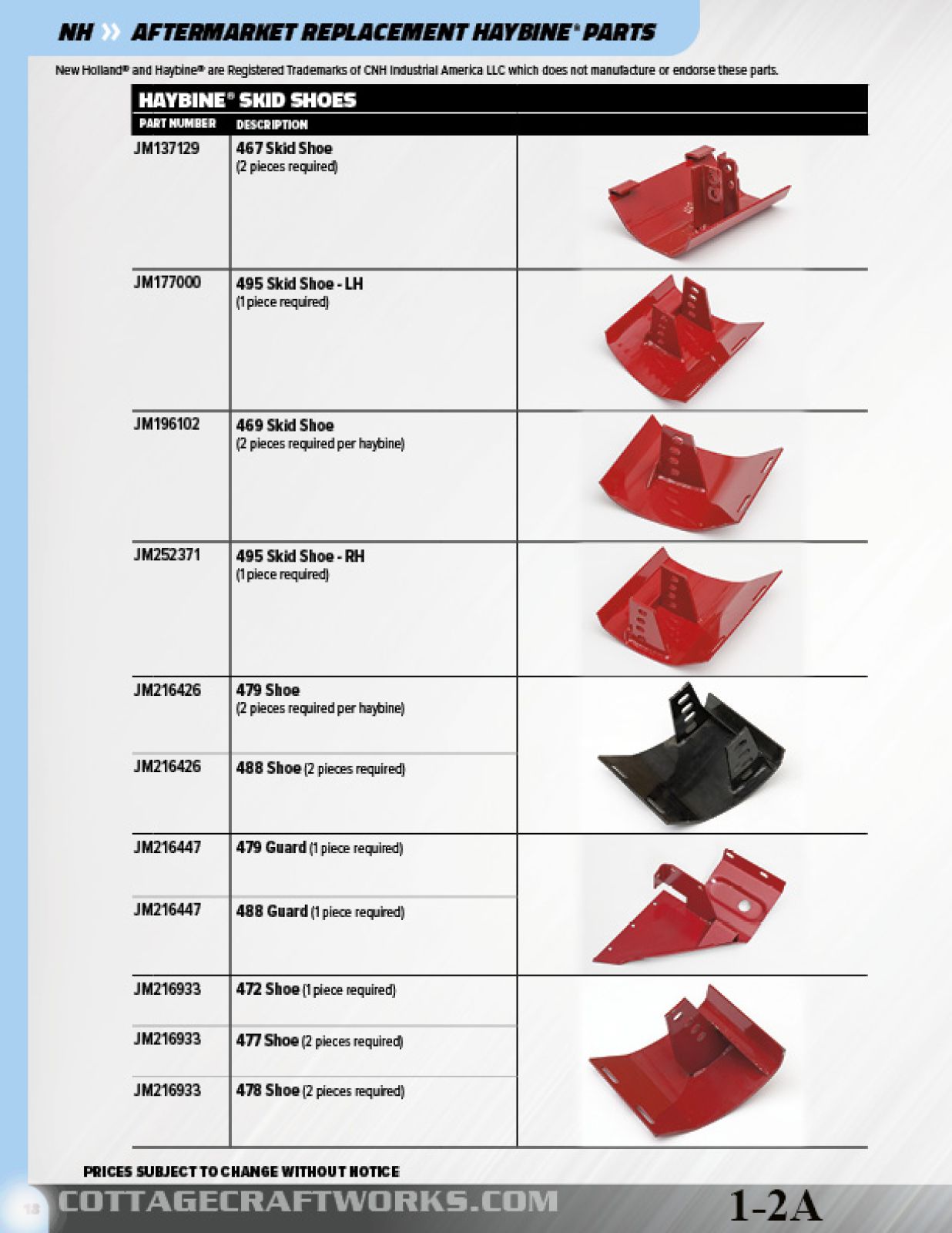

Page 1 Haybine Skids

1 x JM137129 467 Skid Shoe (2 pieces required)

1 x JM177000 495 Skid Shoe - LH (1 piece required)

1 x JM196102 469 Skid Shoe (2 pieces required per haybine)

1 x JM252371 495 Skid Shoe - RH (1 piece required)

1 x JM216426 479 Shoe (2 pieces required per haybine)

1 x JM216426 488 Shoe (2 pieces required)

1 x JM216447 479 Guard (1 piece required)

1 x JM216447 488 Guard (1 piece required)

1 x JM216933 472 Shoe (1 piece required)

1 x JM216933 477 Shoe (2 pieces required)

1 x JM216933 478 Shoe (2 pieces required)

Page 2A

1 x JM216966 472 Guard (1 piece required)

1 x JM216966 477 Shield (1 piece required)

1 x JM216966 478 Guard (1 piece required)

1 x JM634783 474 Shoe (2 pieces required per haybine

1 x JM634783 489 Small Shoe (2 pieces required per haybine)

1 x JM634783 492 1465 499 Small Shoe (2 pieces required per haybine)

1 x JM626183 Shoe Pin

1 x JM770942 474 Shield (1 piece required)

1 x JM770942 489 Large Shoe (1 piece required)

1 x JM770942 492 1465 Large Shoe (1 piece required)

Page 2b Haybine Knifes

JM134186 Under Serrated 9 ft. Bolted Knife for 461-460

JMFQ215 Haybine Guard

JM648844 Under Serrated 9 ft. Bolted Knife for 469

JM76517 Reel Tine for All Haybines (Except for 495 Haybines)

JM8041 JMS20-4268 B+ Single Blade Section (10 PK)

JM8042 SCH Sections (work well in grass or alfalfa)

Page 3a

JM86616989 Bolted Under Serrated (7 ft.) for 474

JM86616990 Bolted Top Serrated (7 ft.) for 474

JM86617059 RH Guard

JM86617060 LH Guard

JM86617061 Stub Guards FQ250

JM86624469 Bolted Under Serrated (9 ft.) for 489-492-1465

JM86837281 Under Serrated (7 ft.) Bolted for 467

JM9623570 Bolted Under Serrated (9 ft.) for 479-488

JM9623571 Bolted Under Serrated (7 ft.) for 472-477-478

JM9623572 Bolted Under Serrated (12 ft.) for 495

Page 3b Knife Heads and Bushings

JM 46826 Bushing

JM 577867 Knife Head Knife for 479- 488

JM 612408 Knife Head Bushing for 474-489-492-1465

JM80289488 Knife Head for 474-489-492-1465

JM 80577868 Knife Head for 472-477- 478

JM 86507377 Knife Head for 460-461-467-469

JM 86508155 Knife Head for 495

Page 4a

JM 87297020 Knife Head Bushing with Bolt for 472-477-478-479- 488-495

JM 254132 without Bolt for JM87297021 Above Knife Head

JM 87297021 Knife Head Bushing with Bolt for 461-467-469

JM 134182 without Bolt for JM87297021 Above Knife Head

Page 4b Haybine Parts

JM 121831 Screw Cap on Cam Bearing

JM 127637 Bushing 469 Wobble Box

JM 127820 LH Tine

JM129295 Gib Key

JM 134142 Triangle Plate with Shaft On 472, 477, 478, 479, 488

JM 144463 Sprocket

JM 144466 Lower Roll Drive Chain #60 90 Pitches

JM118895 #40 86 Pitch Chain fits on 474, 489, 492

JM 144523 Sprocket

JM144494 Sprocket & Hub (not pictured)

Page 5 Haybine Parts

JM 163641 Ball Bearing for Rolls Comes with locking collar 472, 474, 477, 478, 467 (requires 4 pc.)

JM 165484 Cam Bearing

JM 174633 Skid Shoe Clips Fits 469-472-477-478-479-488- 495

JM 189785 Shroud (Dust shield) for 479, 461, 469, 460, 495

JM 204326 Output Angle Gearbox Shaft for 472, 477, 478 205⁄8" shaft

JM 215855 Linkweld Assembly for 472, 477, 478 (Requires 2 pc.)

JM 216294 Tine Bar 8¾" fits 477

JM216497 Output Angle Gearbox Shaft for 479, 488 23.75" shaft

JM226870 Linkweld Assembly for: 479,  488, 469, 495 - (Requires 2 pc.)

JM247911 Tine Bar 6¾" fits 477

JM252653 Cam Track (used) for 469, 472, 477, 478, 479, 488 (email for Price)

JM255649 Input Angle Gearbox Shaft for 472, 478, 479, 488

JM261958 RH Wear Plate

JM227478 Haybine Guard for 495 (not pictured)

Page 6

JM263736 Tine Bar 8.5" (Measure from end of tine bar to second hole)

JM263738 Tine Bar 7⅝" (Measure from end of tine bar to second hole)

JM264871 Clip-on Tine Bar

JM280369 Knife Bolt & Nut ⅝ x 3½ FT.Gr.8 474, 489, 492, 1465

JM283594 16 Tooth Sprocket 489 Wobble Box

JM285667 Bushing Drive Line

JM285879 488-479 Hub Sprocket Weld Assy

JM285969 Hub and Sprocket Assembly

JM286078 Reel Bushing

JM289416 Bearing Guide

JM570384 Reel Belt Tension Spring Subs to JM87579261

Page 7

JM573376 Yoke and Pin 488 BSN 587749

JM575246 Tine Bar Bearing Housing Subs to 86631094

JM579497 Clip 474, 489, 492, 1465

JM58106 Reel Belt Idler Pulley for 482, 488, 489, 1465 Subs to 86631120

JM612377 Rear Baffle on 474, 489, 492

JM614671 Bushing on Knife Arm .999 O.D.

JM647876 Wear Strip

JM689165 Wobble Shaft on 474, 489, 492, 1465

JM700035 1¼x6 Spline Yoke on Rear of Front PTO for 489

JM701562 Bushing on Knife Arm fits 489, .874 O.D

JM705116 Tine Bar 8⅝" fits 472-478

Page 8

JM705117 Tine Bar 7 ⅝" fits 472-478

JM709063 Bushing fits 489, .874 O.D.

JM763026 Washer for 489 Yoke

JM763883 Haybine PTO Set Screw for Yoke #70035

JM764347 Yoke on 474, 489, 492, 1465

JM689166 Pin fits into JM764347 (not pictured)

JM764892 Knife Head Arm For 489, 492, 1465

JM76516 RH Tine

JM772028 Tine Clip (Used)

JM782590 Cam Track (Used) 474, 489, 492  (email for Prices)

JM80201 Guard Bolts & Nuts Kit for 7'

JM80202 Guard Bolts & Nuts Kit for 9'

JM770940 Nylon 489 Idler Wheel (not pictured)

Page 9

JM8043 Haybine PTO for 479-478-489-492

JM8044 NH489, 492 Hydraulic Tongue Swing Kit with cylinder and hoses

2 x JM8045 NH489, 492, 1465 Haybine Rolls

JM80579116 Pin Drive 489

JM850136 Hold Down RD Sub Guard

JM86528220 Tube Weld Assembly

JM86575514 Ball Bearing for Rolls Comes with locking collar for 479, 488, 461, 460, 469, 489, 492, 495, 1465  (Requires 4 Pc.) (High quality brg.)

Page 10

JM86620027 Roll Bearing Flange for 479, 488, 460, 489, 492, 495, 461, 467, 1465 (Requires 4 pc)

JM86625582 RH Divider Assembly

JM86627870 Idler Sprocket – (Specify what size in the comment box at checkout)

JM86629289 Skid Shoe Clips Fits 474-489-492-1465

JM86631017 Low Stub-Guard Hold Down

JM86631018 High Stub-Guard Hold Down

JM86631102 Reel Belt Idler Pulley for 482, 488, 489, 1465

1 x JM86633047 Shroud (Dust shield) for: 479 - requires 2 pc

1 x JM86633054 Shroud (Dust shield) for 477 – requires 4 pc

1 x JM86635012 Flangette for Roll Bearings for: 472, 474, 467, 477, 478 requires 8pc .  (Not Pictured)

JM87449 Nut for 489 Yoke Inside wobble box (Not Pictured)

Page 11 Wobble Box Bearings, Races, Seals

Haybine  472, 477, 479, 488, 495

JML68111 or L68110 NH175508 Race

JMJLM104910 NH199955 Race

JMJLM104911 NH287066 Race

JMRA100RR NH287066 Race

JMLM104948 NH199954 Bearing

JML68149 NH175507 Bearing

JM24904 NH223297 Seal

JMLM11900 NH67372 Bearing

JMLM11910 NH36725 Race

474, 489, 492 Haybine Wobble Box Bearings, Races, Seals

JM15112 NH29139 Bearing

JM15245 NH289966 Race

JM471652 NH288875 Seal

JMJLM710910 NH221003 Race

JMJLM71049C NH221002 Bearing

JM15123 NH29140 Bearing

JM471413 NH712341 Seal

JMB2812 NH706065 Needle Bearing

JM473237 NH225615 Seal

461, 467, 469 Haybine Wobble Box Bearings, Races, Seals

JMRA100RR NH134130 Ball Bearing

JMLM603301 NH67526 Race

JMLM67010 NH36723 Race

JMLM11900LA NH67372 Bearing

JMLM11910 NH36725 Race

JMLM603049 NH67527 Race

JMLM67048 NH36726 Bearing

JMJLM104911 NH287066 Race

JMLM104949 NH287902 Bearing
