IHC-JD Mower Bearing Pitman Connecting Unit

In stock
SKU
DA2309
$0.00

Amish improved sealed single or double bearing pitman connecting unit for vintage IHC McCormick-Deering and John Deere Big 4 Sickle Bar Mowers. The double bearing unit fits both IHC #7, #9, and JD #4 Mowers.

It does not require grease, provides roller bearing(s) in the same space as the original boxing bushing that required frequent removal and grease repacking. It does not include wrist pin or washer plates add these using the drop-down boxes.

We also offer both the single and double bearing units mounted on the pitman wood with the pitman straps and latch ready to mount and go. Click Here for more information on this package.

Read more below >

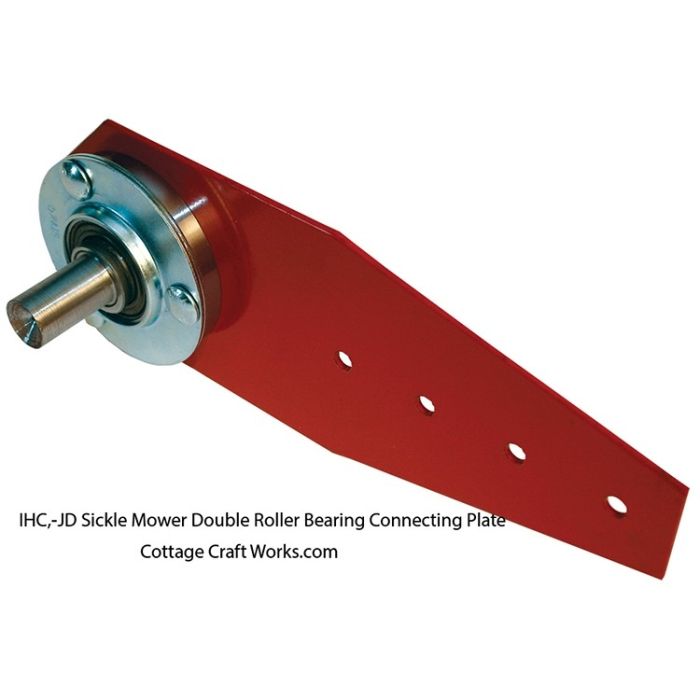

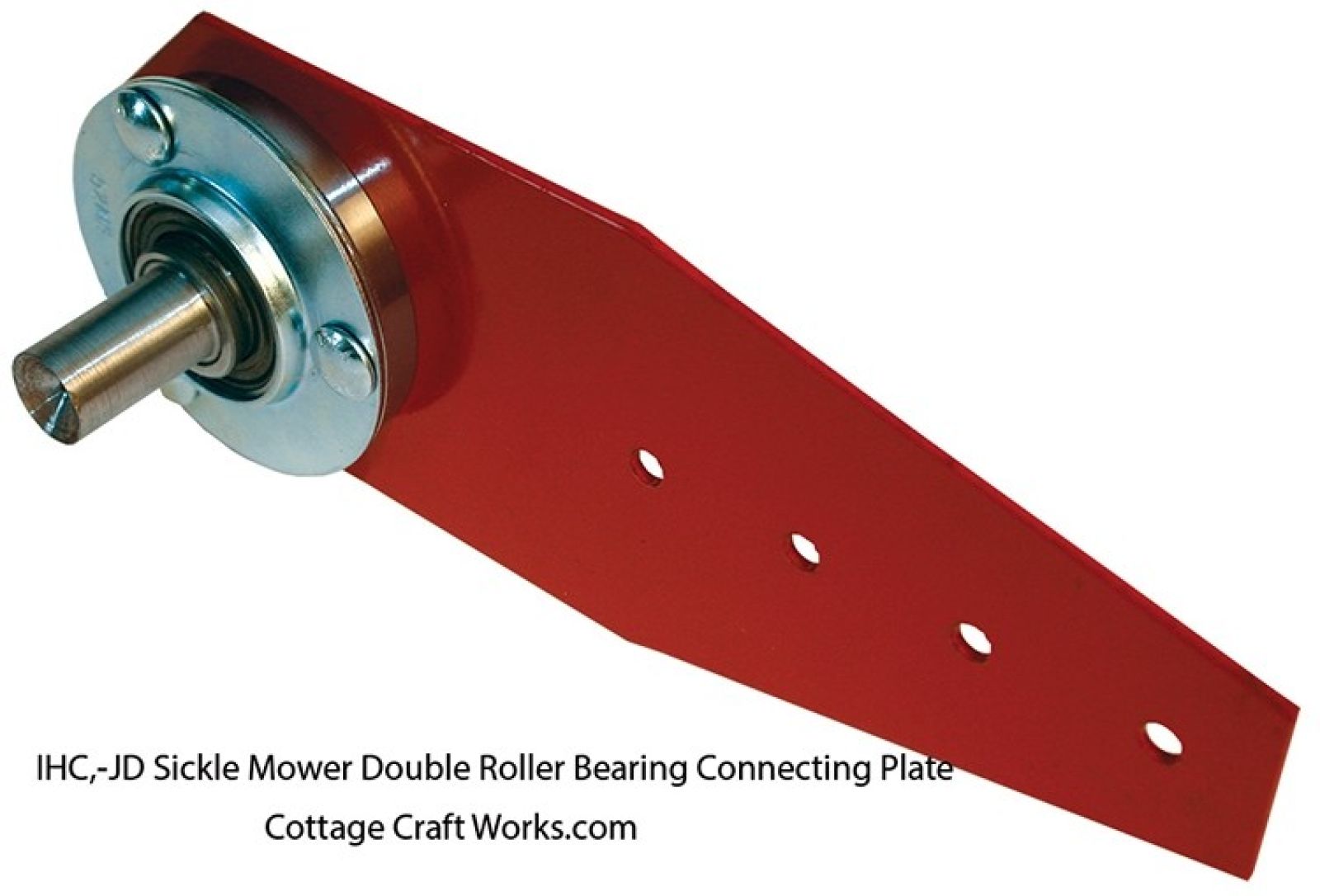

IHC McCormick-Deering #7 & #9 Sickle Mower Double Roller Bearing Unit
IHC McCormick-Deering #7 & #9 Sickle Mower Double Roller Bearing Unit IHC, JD, Double Bearing Sickle Mower Double Roller Bearing Connector IHC McCormick-Deering #7 & #9 Single Bearing Connecting Plate John Deer #4 Single Bearing Connecting Plate IHC McCormick-Deering Wrist Pin M90 Wrist Pin Nut M91-1/2 John Deer #4 New Style Wrist Pin for Double Bearing Unit Z2139 John Deer #4 Original Wrist Pin Z6722 Pitman Washer Plate IHC & JD M1581 Pitman Parts Diagram IHC McCormick-Deering Vintage Sickle Mower

Details

Please note: If using the double bearing unit on a J.D. Mower you will need to replace the wrist pin with the new style Z2139, and the wrist pin nut M91-1/2 to fit it. You do not need to replace the wrist pin if using the double bearing unit on an IHC mower or the single bearing unit on either a J.D. or IHC mower.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To deselect click on the "Please Select" again.

Our Amish companies have been making replacement and sourcing parts since 1950 for what many consider antique or junk farm machinery today. In the late 1800s and early 1900s, just about every farm used the same farm equipment providing ample outlets for replacement parts. As most farmers modernized through the 1900s the Amish still depended on the horse-drawn equipment as many still do today.

Since this equipment is no longer being manufactured and dealers are no longer stocking parts it becomes difficult to keep this old vintage farm machinery operational. Both Amish and vintage farm machinery implement enthusiast scour junkyards, farms, and tree lines in search of these long-abandoned implements for restoration.

Cottage Craft Works.com travels deep into the back roads to find Amish companies who are still making the replacement parts to maintain and restore this old-time horse-drawn farm machinery.

Click Here to see all the vintage farm implements and replacement parts available.
