Ice Cream Freezer Wagon 20-qt Gas Powered

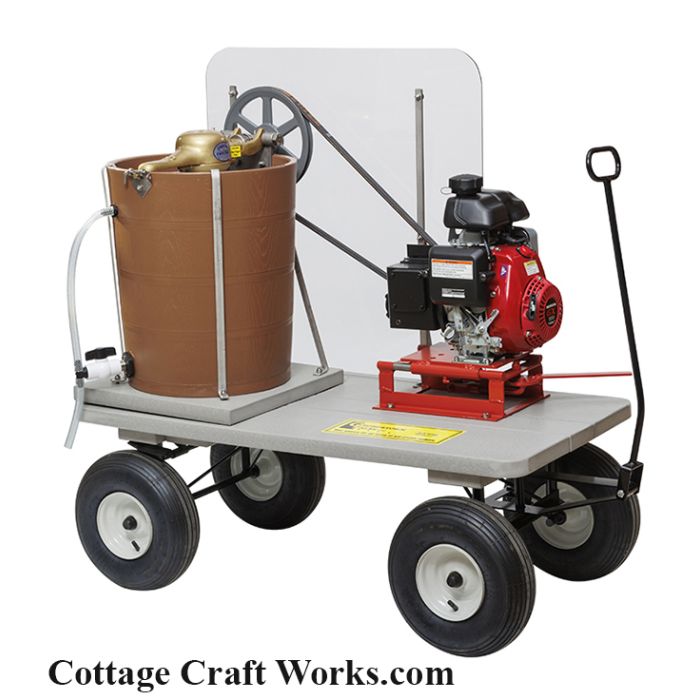

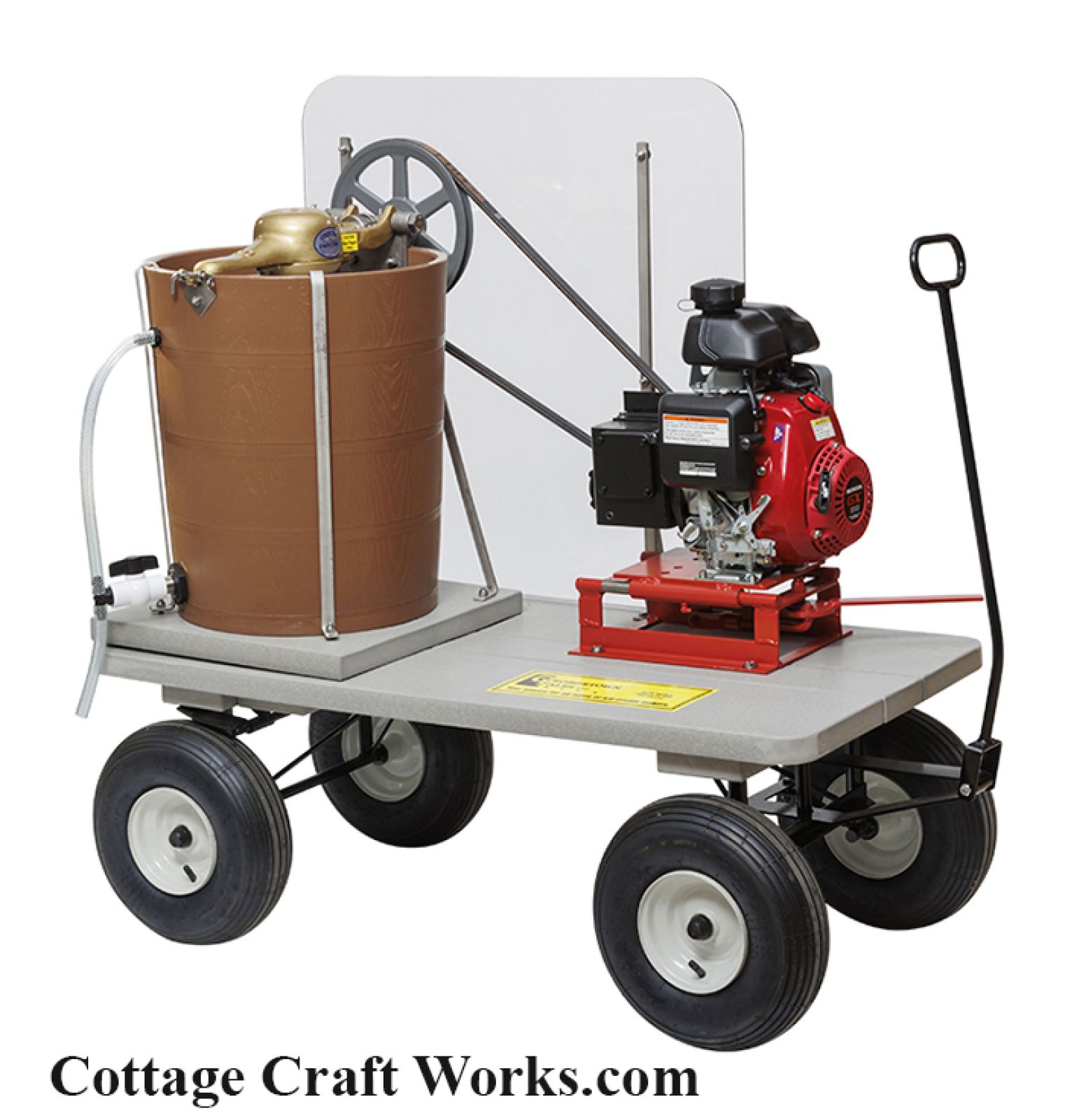

Country 20-Qt wagon mounted ice cream freezer powered by a 3-HP Honda gas engine. Comes mounted on an easy-to-pull Amish-made finished oak wagon with quality pneumatic tires and a parking brake.
Shipping is not included in the price. Read more below > ( The wooden wagon beds are out of stock until fall 2022. The Poly Bed is in stock. It must be ordered only with the poly tub.)
White Oak Tub with stainless steel adjustable bands, or available with an all-poly tub at no additional cost. This takes the worries out of potential leakage due to the drying out of the wood staves.
As with all wooden tub ice cream freezers the wood tub must be maintained to prevent wood shrinkage in dry atmospheres and not stored in hot and dry garages and attics to prevent shrinkage that will lead to leakage. If the container is used only periodically a routine should be established to fill it with water to maintain the staves. The manufacturer does not warrant the ice cream freezer tubs from leakage. Normally filling with hot water will return the staves back to fitting tightly and stop leakage.
The lever slide clutch makes it easy to engage the freezer. The heavy-duty gearbox utilizes a belt and pulley to run the freezer pulley. Clear Plexiglass shield on the outside for curious fingers.
The tub is hinged for easy tip-over to remove ice.
The optional recycled poly wagon bed is becoming popular because of its resistance to spilled water especially salt water allowing the finish to remain like new.
Dimensions: 54” L x 24” W x 41” H. Net weight 269 lbs., shipping weight 344 lbs.
Why Country Freezers are your best quality purchase:
- Amish handcrafted (the old-time quality, the company does not try to compete with imports)
- Tall design for optimum freezing
- Extra-heavy seamless stainless steel can
- Rustproof manganese-bronze housing
- Rustproof zinc gears
- White Oak wooden tub (the same used to make whiskey and other barrels) Optional Poly tub available.
- Adjustable stainless-steel tub straps (four of them to keep the tub staves tight)
- Stainless steel shaft & handle
- Stainless steel dasher
- ¼-turn slide latch (positive locking)
- All stainless-steel fittings (nothing to rust)
- The freezer Should last a lifetime
- 5-year warranty on all stainless-steel parts
Other Freezer Information
The wood tub is 21" H x 17-5/8" top diameter x 15-5/8" bottom diameter.
The total height of the machine is 30-3/4". Stainless Steel Can measure 9-1/4” Diameter x 17-7/8” tall and holds approximately 5.1 gallons of liquid, most people will make 4 to 4-1/2 gallons of ice cream so it does not overflow. On average 2 gallons of mix makes 4 gallons of ice cream.
Generally, ice cream will take between 15-45 minutes depending on factors of the first batch or repeat the batch, recipe, etc.
Note: The freezer is being used in commercial applications and passing health department inspections. If your local health authority demands NSF certification; we can provide the NSF upgrade which will have the certification stamped on the freezer can, lid and dasher for $75. Select the certification upgrade using the drop-down box at the top of the page. NSF certification will need to be custom-built please allow 3-4 weeks for shipping.
The freezer will need to be sent truck freight and is priced F.O.B. You may select a shipping deposit above. If you would like an actual quote or will pick it up in PA, select F.O.B., or select a deposit based on your location. We will refund the difference or contact you if the actual shipping is expected to exceed 10% of the deposit.
The unit will come with grease in the gearbox. Use the drop-down box at the top of the page to add a 14 oz tube of food-grade grease to the gearbox for ongoing lubrication. The tube fits a regular grease gun.
If you ever need a new belt it uses a Dayton B67 V-Belt, Outside Length 70" - 6A157 | 6A157 - Grainger
