New Idea 324, 325 Picker LH Long Gathering Chain Drive

Aftermarket New Idea 324 & 325 vintage double row corn picker left-hand long gathering chain parts. Parts are being remanufactured by the Amish to maintain these vintage corn pickers within the Amish communities for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

SKU NI324-325LHLGCP

Customizable Options:

Description / New Idea 324, 325 Picker LH Long Gathering Chain Drive

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Prices are subject to change without notice.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

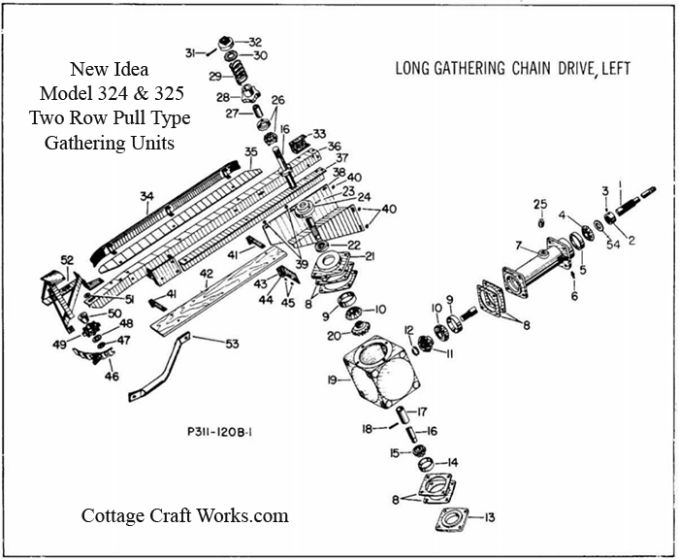

Available Parts

#1 302238 Ratchet Shaft 1-1/4" dia. x 19-5/32" L

#4 K 3549 Bearing Cone 1-1/4” Bore

#5 K 3548 Bearing Cup 2-21/64” dia.

#11 303686 Beveled Gear 14 Tooth Splined

#14 K 3839 Bearing Cup 1-25/32 O.D.

#15 K3840 Bearing Cone ¾” Bore

Sprockets, Gears, Ratchets

#11 303686 Beveled Gear 14 Tooth Splined

#20 303685 Beveled Gear 15 Tooth Splined

#26 E 395 Ratchet Clutch Plate

#49 302826 Sprocket 8 Tooth 1” Bore

Gathering Chain, Slides

#34 309087 Chain Slide

#35 302225 Chain Slide Plate

#46 302320 Long Gathering Chain
