New Idea 324, 325 Corn Picker Right Snapping Unit

In stock

Aftermarket New Idea 324 & 325 vintage double row corn picker right snapping unit parts are being remanufactured by the Amish to maintain these vintage corn pickers within the Amish communities for harvesting.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional shipping may be required for large items or large orders.

Read more about available parts and shipping below the drop-down boxes >

New Idea 324, 325 Corn Picker Right Snapping Unit
New Idea 324, 325 Corn Picker Right Snapping Unit


It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

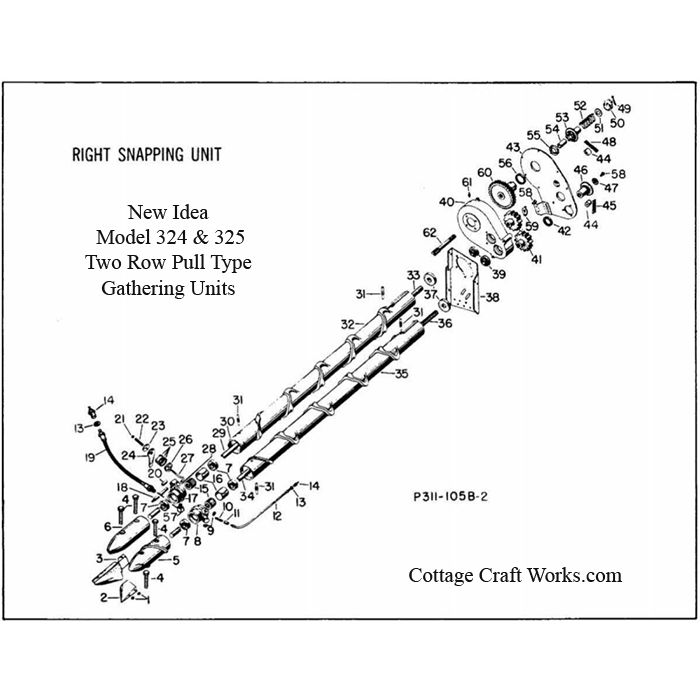

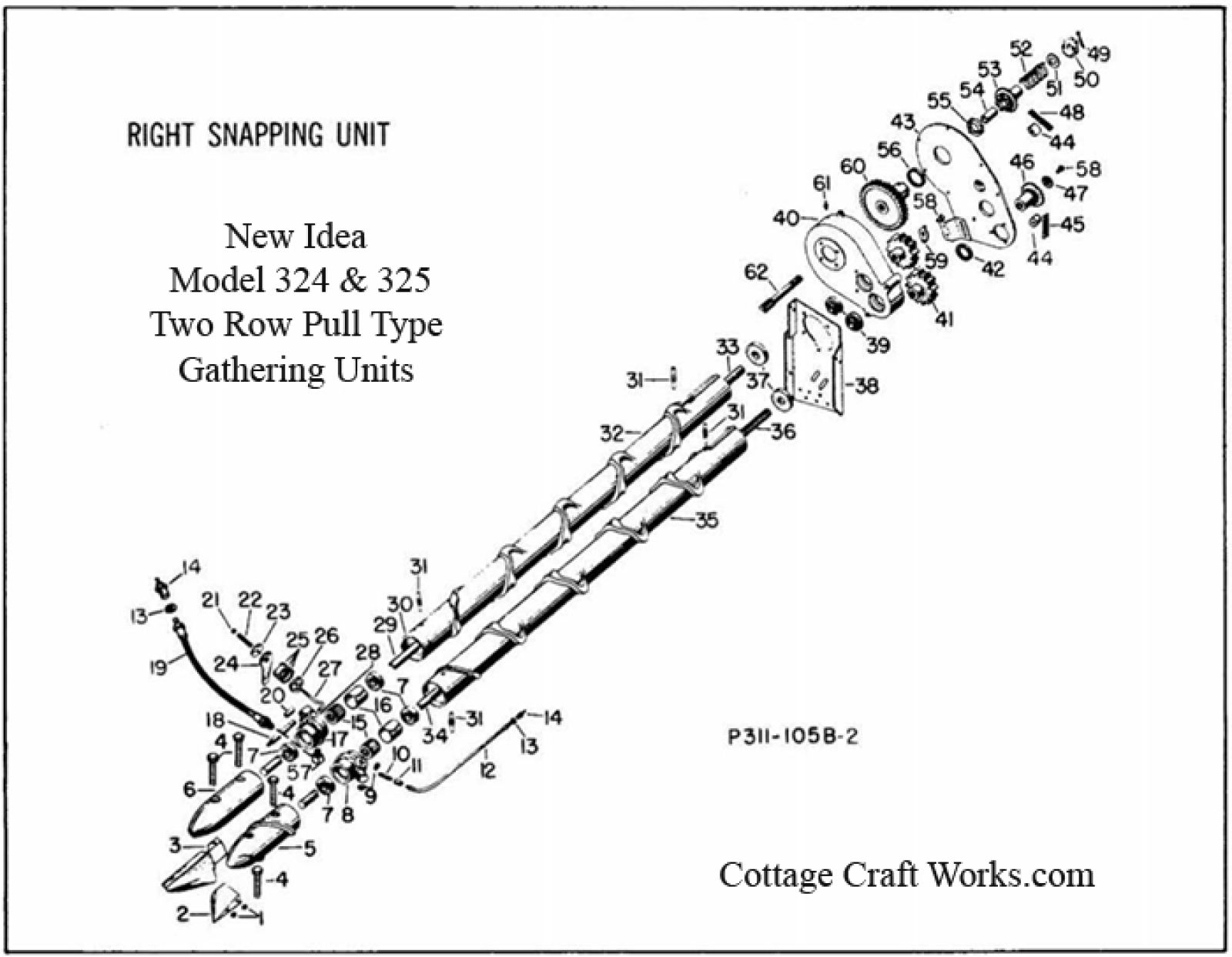

Available Parts

#2 302295 Entry Guide, Inner

#3 302297 Entry Guide, Outer RH

#8 302256 Bearing Housing

#15 K 4650 Roller Bearing 1” I.D. x 1-1/2” O.D. x 1-7/16” Long

#16 K 4651 Split Sleeve for Roller Bearing 1-1/2” I.D. x 1-11/16” O.D. x 1-1/2”

#17 305804 Bearing Housing, LH

#29 725203 Stub Shaft 1” O.D. x 12” Long

#31 K 1647 Drive Pin 5/16” x 2-1/2”

#32 308271 Snapping Roll Upper Right

#33 302255 Snapping Roll Trunnion Short 1-1/4” x 8-9/16” Splined

#34 725204 Stub Shaft 1” dia. x 10-3/4” Long

#35 308272 Snapping Roll Lower Right

#36 302254 Snapping Roll Trunnion Long 1-1/4” x 10-3/16” Splined

#39 010830 Bearing, Ball 1-1/4” dia.

#42 K 4661 Seal 1-1/4” I.D. x 1-3/4” O.D. x ¼” Thick

#44 300041 Chain Slide

#55 E 395 Ratchet Plate

#56 010055 Seal 3-1/4” O.D. x ¼” Thick
