New Idea 14 & 18 Spreader Feed Mechanism Parts
Spreader Feed Mechanism parts for vintage New Idea No. 14, 18 Manure Spreaders. Available parts include ratchet wheel shield, inner ratchet wheel shield, distributer ratchet shield, auxiliary feed arm shield, extension spring, bolt, and distributer chain shield.
Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.
Additional Shipping may be required.
Read more below >
Description / New Idea 14 & 18 Spreader Feed Mechanism Parts
It would be data-prohibitive to list each part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $14.50 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.
Additional shipping may be required for larger orders. We will send you an invoice if needed.
Since parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

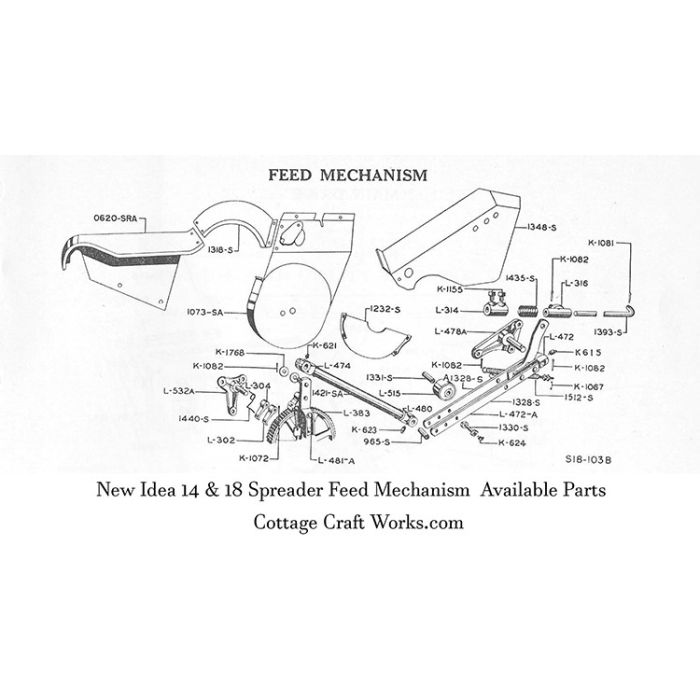

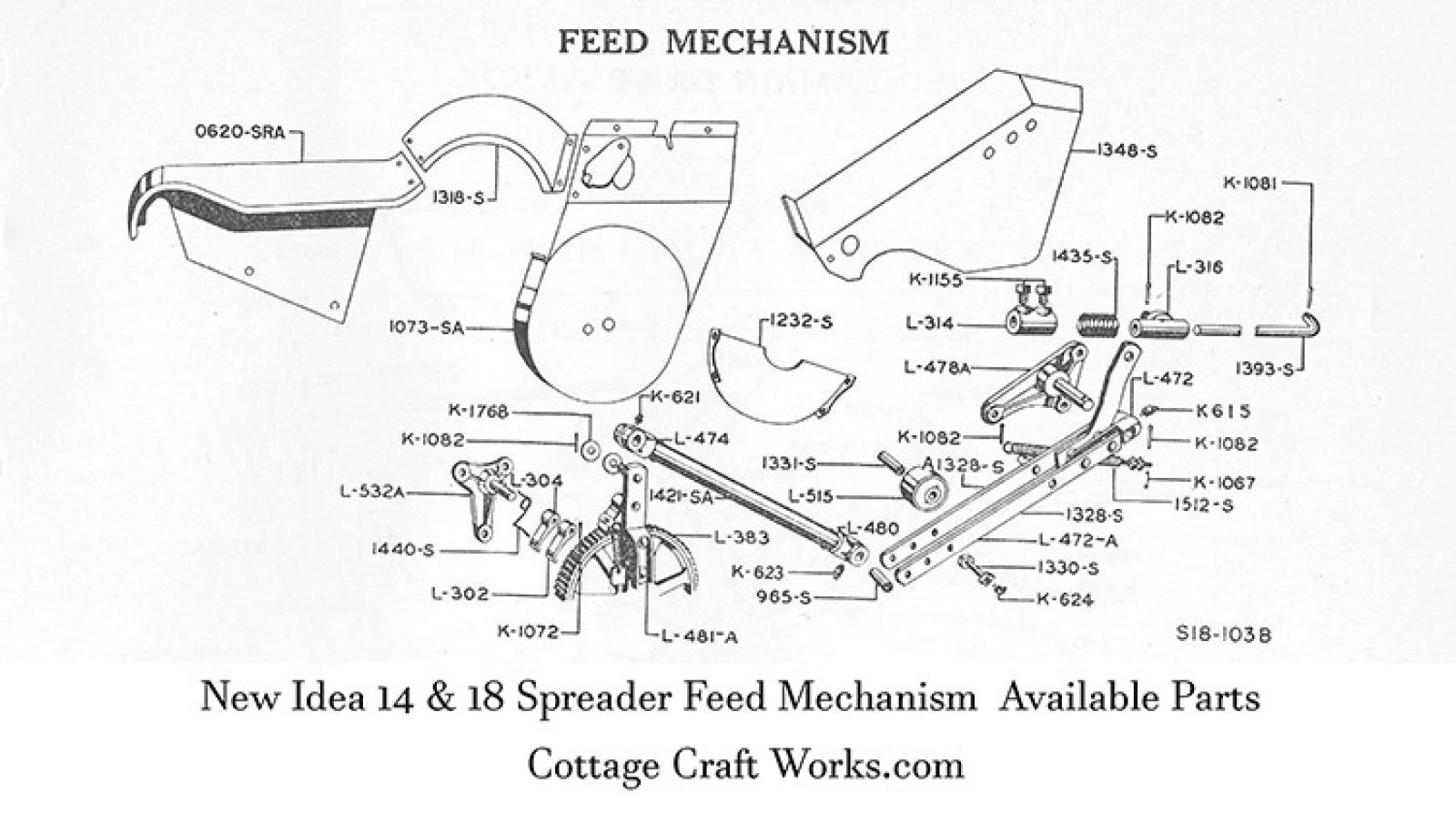

Available New Idea No. 14, 18 spreader feed mechanism parts based on original part numbers
*Denotes Special Order Item that may take 3-4 weeks.
Page 1
K 606-M800 Grease Fitting 1/8” pipe thread Straight
K 618-M803 Grease Fitting 1/8” pipe thread 90 degrees
K 851 Washer 1-1/2” O.D. 15/16” I.D. subs 1-1/2” x 1” 18 gauge
K 1067 Spring Cotter 3/32” Dia., ¾” Long
K 1072 Spring Cotter 1/8” Dia., 1” Long
K 1081 Spring Cotter 3/16” Dia.,1” Long
K 1082 Spring Cotter 3/16” Dia., 1-1/4” Long
K 1155 Set Screw 3/8” Dia., 5/8” Long
L 300-NI5029 Single Set Collar
Page 2
L 302-NI5001 Retention Pawl, Short
L 304-NI5002 Retention Pawl, Long
L 314-NI5030 Double Set Collar
L 316-NI5031 Slide Collar
L 383-NI5009 Ratchet Wheel 1-1/16” Bore Uses K 599 Key
L 472-NI9026 Auxiliary Feed Arm Bearing w/rivets.
L 478A-NI4017 Auxiliary Feed Arm Post w/pin
L 515-NI9021 Roller for Feed Arm
Page 3
*1073-1/2S Ratchet Wheel Shield (special order)
1232S-NS7211 Inner Ratchet Wheel Shield.
1318S-NS7212 Shield Connection Distributer/Ratchet Wheel
1331S-NI9023 Bushing for Feed Roller 1” (.997) O.D., 1-15/16” Long
1512S-NI9022 Extension Spring w/bolt 7/8” O.D., 5-1/2” Long, 39 Coils
New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.
Cottage Craft Works provides these hard-to-find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18, and 206.
