Maytag Wringer Cap Parts

New reproduction wringer cap parts for Maytag E, J, and N Wringer Washers from the 1940s’-1983. Amish replacement parts are often better made than the original factory parts using lasting materials like stainless steel in place of plain steel.

Wringer Cap parts include replacement upper and lower rollers, roller hangers, release bar, reset handle, tension handles, and eccentric parts.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more about available parts and shipping below >


Customizable Options:

Description / Maytag Wringer Cap Parts

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

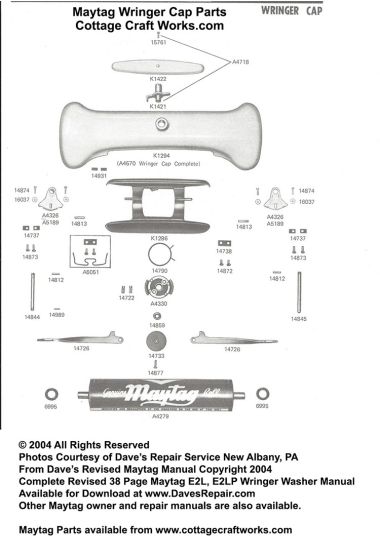

Available parts are listed below:

A4279 2-3/4” Upper Roller Square Tub, use A4454 2-1/4 Upper Roller for Round Tub

A4720 2-3/4” Lower Roller Square Tub, use A4719 2-1/4” Lower Roller for Round Tub Models

A4326 Upper Roller Hanger Reg Size Square Tub, A5189 Oversized Hanger for Square Tub Models (screws included) See MT103 for just the bronze bearings

A4472 Upper Roller Hanger Round Tub Reg Size, A5190 Oversized Hanger for Round Tub Models (screws included) See MT103 for just the bronze bearings.

A4330 Tension Eccentric

A5051 Centering Spring

K1286 Release Bar

K1421 Tension Reset Shaft

K1422 Reset Handle

MT103 Bronze Bearings for new style upper hangers A4326, A5189, A5190 and A4472

6995 Fiber Washer

14726 Tension Handle (Not Pictured)

14790 Coil Spring

14874 Screw for Upper Hanger (Not Pictured)

14859 Spacer for Eccentric

15761 Screw for Reset Handle (Not Pictured)

56016 Grease 4oz tube used on, rollers, and tension parts.

The Amish depended on these old wringer washers as most of the United States population did in the early 1900s until newer modern spin cycle machines were developed.  As manufacturing and replacement parts moved forward the Amish began to have difficulty in obtaining parts to maintain the wringer washers. So, they began manufacturing their own supply of replacement Maytag parts as they still do today. Cottage Craft takes a step back in time to help people who are still using or restoring the vintage home and farm equipment acquire replacement parts.

The washer parts listed are the most sought-after Maytag parts. Our Amish shop can procure or make just about any part that was used on the round or square tub machines. Since the Amish convert most of the machines to gas, air, or DC-driven motors they don’t manufacture new electric motors. They also don’t use the drain pump allowing the washer to gravity drain instead. If you should need an electric motor or water pump, we can find you a used take-off. Just email us for the availability of any parts that we don’t list.

International customers, please email us with the parts that you need, and we will calculate the shipping cost and send you a PayPal invoice in US Dollars. Duties and taxes will still be due to your country upon delivery.

Parts ship directly from an Amish-owned business without computers, please expect some orders to take up to two weeks to ship. Most parts are stocked but some may need to be made.

Click Here to see all the available parts for Maytag Vintage Wringer Washing Machines.

Click Here to view our complete Maytag Wringer Washer service and repair manual.

Shipping Estimator

Estimate Shipping Calculator

Note : * Required Field(s) in the drop-down box options above must be selected to obtain a shipping estimate. Alaska-Hawaii customers contact us. International Customers other than Canada, please use a US Forwarding Agent like MYUS.COM



Customer Reviews

Great parts and prices and the guys will help with any Question you have.
Review by
I have a J2L Maytag Wringer Washer and replaced the Centering Spring part# A5051 and replaced the Coil Spring part# 14790 I could not find these parts anywhere but Cottage Craft Works these guys will be glad to answer any questions you have. Great guys and cheap prices.

1 Item

Write Your Own Review
You're reviewing: Maytag Wringer Cap Parts

check-circle You submitted your review for moderation.

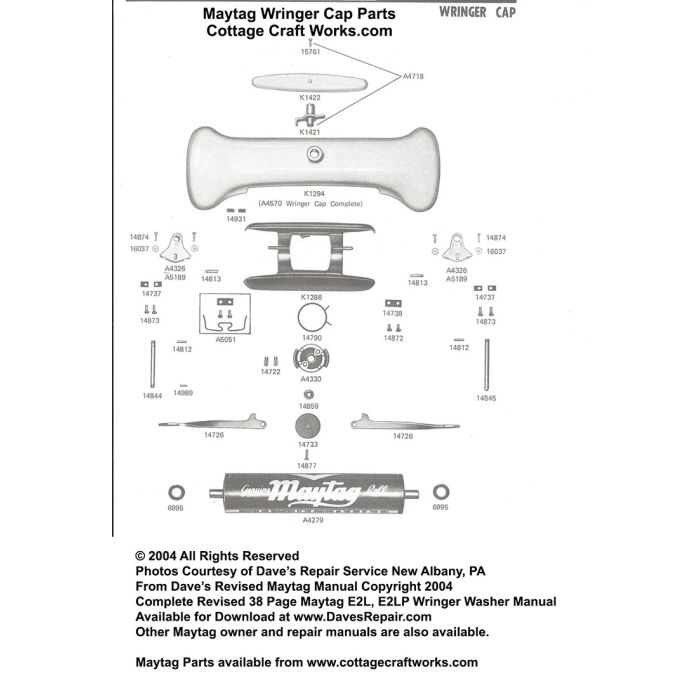

 Vintage Maytag Wringer Washer Wringer Cap Parts
