IHC GD Corn Binder Frame and Pinion Parts

Aftermarket replacement parts for IHC McCormick-Deering Ground Driven Corn Binder Frame and Bevel Pinion Shaft Parts.

Parts are being manufactured by an Amish company located in PA. For years the New McCormick-Deering, IHC Corn Binders have been the favorite of the Amish communities. These parts are being made to keep the old units running.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. Select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on "Please Select" again.

Additional Shipping may be required.

Read more about available parts and shipping below the drop-down boxes >

SKU GR1006

Customizable Options:

  $0.00

Description / IHC GD Corn Binder Frame and Pinion Parts

You are shopping the Ground Drive Binder Parts. If you are looking for PTO Binder Parts, please select the PTO category.

It would be data-prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few small parts. We do charge a minimum of $19.95 flat base rate on all items regardless of the size. This is to cover the cost of processing, packing, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders including truck freight. We will let you know if additional shipping will be needed. If you checkout using PayPal, we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Please expect 1-4 weeks for the parts to ship. The Amish shops do not use computers or more modern communication, so orders take a bit longer to receive, package, and ship. We are not able to maintain an electronic inventory of parts either as the shops also sell to Amish machine shops across the country. Occasionally new parts will need to be made before the order can be shipped.

Prices are subject to change without notice.

Using the drop-down boxes please select one part per page. Add it to the cart and then return for more parts on the same page.

Available Parts

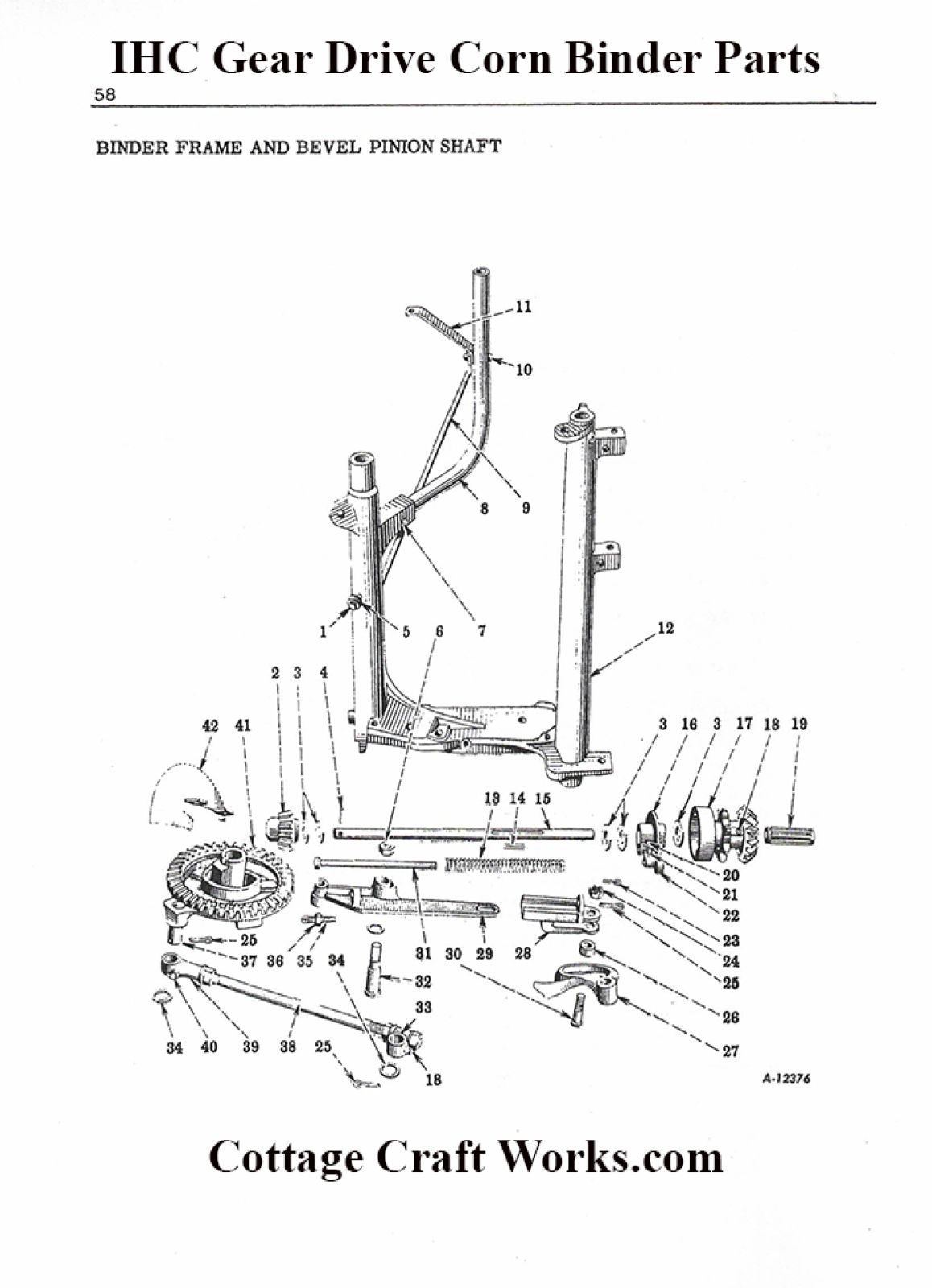

Binder Frame and Bevel Pinion Shaft

2.  VA337-G Pinion. 12 teeth
13. V368-GR Spring
15. C13997-GR Bell Housing Shaft
16. CA3163-GR Drive Disk (Disk Only)
17. CB3166-GR/DA Pinion and Sprocket 16 and 17 teeth
19. C632-GR Roller Bearing
21. V264-GR*** Bell Housing Driving Dog Spring
22. V340-GR Bell Housing Driving Dog
26. V341-GR** Bell Housing Dog Roller
27. V359 1/2 -GR Shaft Link
28. V363 1/2 -GR Rock Lever Slide
29. CA614-GR Rock Lever
30. V364 1/2-GR Slide Pin
31. V369-GR Spring Rod
32. V362 ½ -GR Stud
33. C3495-GR Pitman Adjusting Box
35. Q1324-GR Set Screw
37. V90-GR Gear Stud
38. C739 1/2 -GR Needle Pitman
39. TA449-GR Pitman Head
41. VB336 1/2 – GR/DA Cam Gear, 36 teeth
      V342 Flat Spring, Addon Ratchet Gear Stop for VB336-1/2 (not shown in parts manual)
42. CA657-GR** Cam Pretzel Gear Shield
