Buggy, Carriage, Wagon, Leaf Spring U-Bolts-Clip Hardware

Axle and spring clips (U-Bolts) are used to mount buggy, carriage, and wagon leaf springs to the wagon box and running gear. Use with our buggy, carriage, wagon, leaf springs, and mounting wood.

Priced a la carte, using the drop-down boxes. Select the mounting hardware needed and the prices will incrementally add for each part(s) selected. To deselect, click on “Please Select” again.

Use drop-down boxes to select hardware. If more than one item is needed in a category, add the first item and quantity to the shopping cart, then return to the cart to add more items.

Important Note: The measurements differ across these clips. They are measured before bending. For Example, "A" a 4" length will be a 3-1/2" length. Please refer to the measurements on the PDF sheets for each clip to ensure you receive the correct length.

Read more below >

SKU WCH

Customizable Options:

  $0.00

Description / Buggy, Carriage, Wagon, Leaf Spring U-Bolts-Clip Hardware

Note: Shipping rates are based on the assumption that several clips and nuts are required to complete a project. If larger quantities are needed, we may need to contact you for additional shipping costs.

Important Note: The measurements differ across these clips. They are measured before bending. For Example, "A" a 4" length will be a 3-1/2" length. Please refer to the measurements on the PDF sheets for each clip to ensure you receive the correct length.

Available Hardware

To determine the bolt length, consider the overall thickness of the spring, wood mounting bars, and, if the springs are equipped with poly spacers between the spring leaves, the additional 1-16” -1/8” per leaf.

Spring and Axle Clips use 5-/16” zinc-plated square nuts. After selecting the clips added to the shopping cart, return to the shopping cart to choose nuts and quantity using the drop-down box.

Zinc-plated parts will be silver, and powder-coated parts will be black.

Spring Clip-Half Oval:  (Please see Page 4 for Reference):

Part Number:
Size:
# 629-10
Half oval, 1-1/2" x 10" Zinc plated & Powder Coated
# 629-12
Half oval, 1-1/2" x 12" Zinc plated & Powder Coated
# 629-13
Half oval, 1-1/2" x 13" Zinc plated & Powder Coated
# 630-10
Half oval, 1-1/2" x 10" Zinc plated
# 630-12
Half oval, 1-1/2" x 12" Zinc plated
# 630-13
Half oval, 1-1/2" x 13" Zinc plated



Axel Clip-Bent Square:

Part Number:
Pre-Bent Size:
Use Actual size A (Length) x B (width) (may vary + or - 1/8")
# 516-312
1" x 3-1/2" - Bent Square - Powder Coated
3" x 1"
# 516-4
1" x 4" - Bent Square - Powder Coated
3-1/4" x 1"



Axel Clip-Bent Square Zinc Plated:

Part Number:
Pre-Bent Size:
Use Actual size A (Length) x B (width) (may vary + or - 1/8")
# 503-4
1" x 4", Bent square, Zinc Plated
3-1/4" x 1"
# 503-312
1" x 3-1/2", Bent square, Zinc Plated
3" x 1"

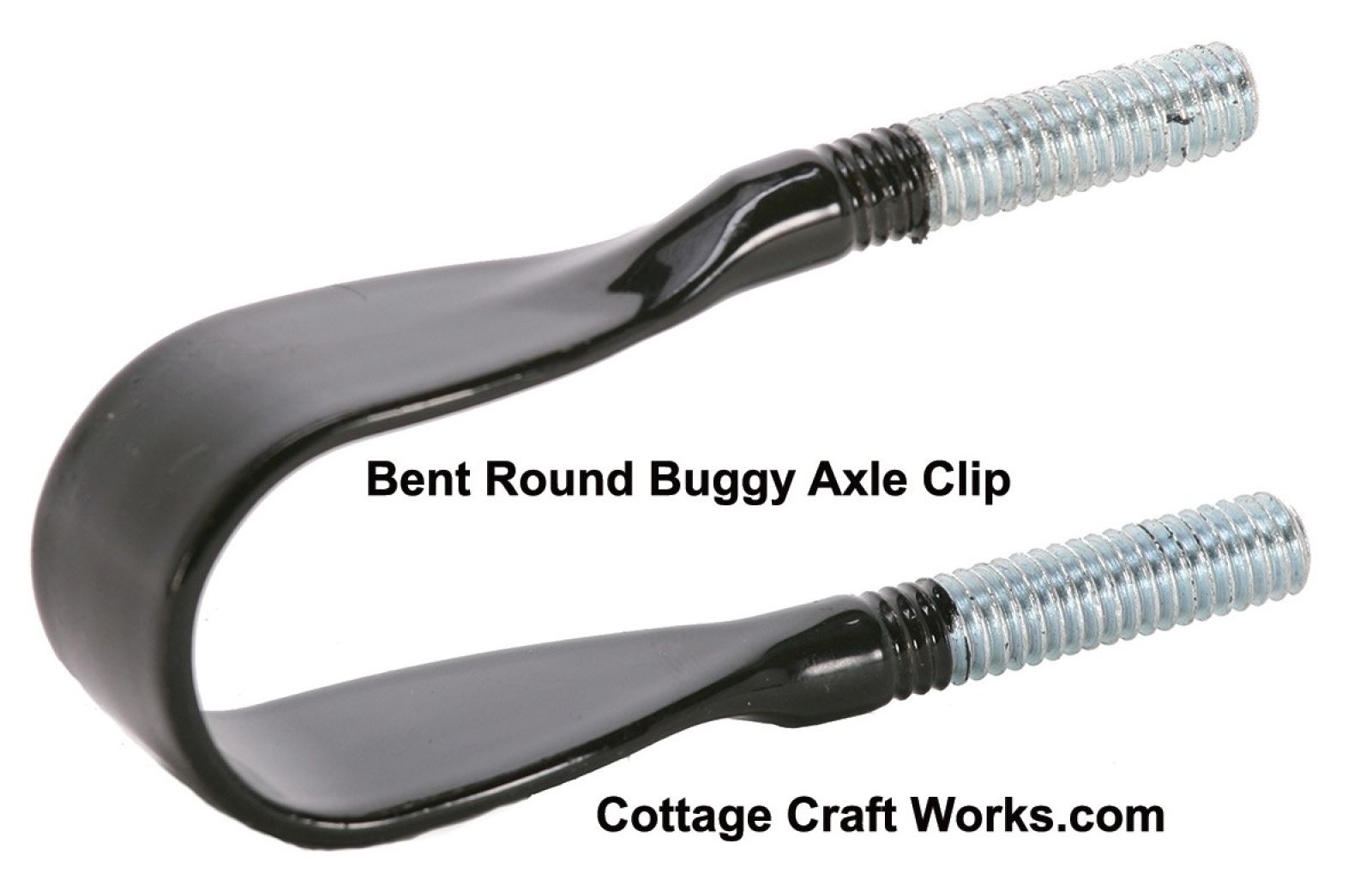

Axle Clip-Bent Round Powder Coated (Please see Page 3 for Reference):

Part Number:
Pre-Bent Size:
Use Actual size A (Length) x B (width) (may vary + or - 1/8")
# 517
1" x 3", Powder Coated
2-3/4" x 1"
# 518
1" x 3-1/2", Powder Coated
3-1/8" x 1"
# 519
1" x 4", Powder Coated
3-1/4" x 1"
# 520
1" x 4-1/2", Powder Coated
3-1/2" x 1"
# 521
1" x 5", Powder Coated
3-3/4" x 1"
# 522
1" x 6", Powder Coated
4-1/4" x 1"
# 523
1" x 7", Powder Coated
4-3/4" x 1"
# 524-4
1-1/2" x 4" Powder Coated
3-1/2" x 1-1/2"
# 524-6
1-1/2" x 6", Powder Coated
4-1/4" x 1-1/2"
# 525
1-1/2" x 7", Powder Coated
4-3/4" x 1-1/2"

Pre-Bent size:
Use Actual size A (Length) x B (width) up to 1/8"



Axle Clip-Bent Round Zinc Plated (Please see page 2 For Reference):

Part Number:
Pre-Bent size
Use Actual size A (Length) x B (width) (may vary + or - 1/8")
# 507
1" x 4-1/2", bent round, Zinc Plated
3-1/4" x 1"
# 508
1" x 5", bent round, Zinc Plated
3-3/4" x 1"
# 509
1" x 6", bent round, Zinc Plated
4-1/4" x 1"
# 510
1" x 7", bent round, Zinc Plated
4-3/4" x 1"
# 511-4
1-1/2" x 4", bent round, Zinc Plated
3-1/2" x 1-1/2"
# 511-6
1-1/2" x 6", bent round, Zinc Plated
4-1/4" x 1-1/2"
# 512
1-1/2" x 7", bent round, Zinc Plated
4-3/4" x 1-1/2"
# 503-312
1" x 3-1/2", Bent square, Zinc Plated
3" x 1"
# 503-4
1" x 4", Bent square, Zinc Plated
3-1/4" x 1"
# 504
1" x 3", bent round, Zinc Plated
2-3/4" x 1"
# 505
1" x 3-1/2", bent round, Zinc Plated
3-1/8" x 1"
# 506
1" x 4", bent round, Zinc Plated
3-1/4" x 1"
Part Number:
Pre-Bent size
Use Actual size A (Length) x B (width) (may vary + or - 1/8")



Axle Clip Bars

Flat bars that span the axles and accept straight bolts are primarily used to attach the fifth-wheel assembly.  Measured between the holes, i.e., a 1” will fit over a 1” axle

1” Zinc Plated #500 or Zinc Plated & Powder Coated #513

1-1/4” Zinc Plated #501 or Zinc Plated & Powder Coated #514

1-1/2” Zinc Plated #502 or Zinc Plated & Powder Coated #515

Axle Clip Nuts-5/16” Zinc Plated #525A

We also carry stainless steel axle clips. Click Here for more information.
